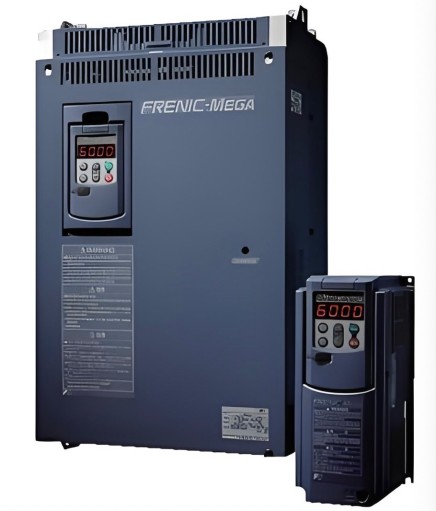

The FRN200G1S4C vfd drives from Fuji Electric is a highperformance Fuji VFD specifically designed for industrial automation applications. With a rated power of 200kW, this VFD operates on a threephase 380480V power supply and offers a wide output frequency range of 0.2400Hz, making it suitable for various load requirements. This vfd drives incorporates advanced vector control technology, supporting sensorless operation to ensure stable motor performance even under lowspeed and highload conditions. Additionally, the FRN200G1S4C Fuji VFD features multiple builtin protection functions, such as overload, overheating, overvoltage, and undervoltage protection, ensuring reliability and safety in harsh industrial environments.
Application Scenarios
The FRN200G1S4C VFD is widely used in applications such as fans, pumps, conveyor belts, compressors, and heavy machinery. Its energyefficient characteristics make this vfd drives an ideal choice for industrial energysaving upgrades, while its highprecision control capabilities are wellsuited for applications requiring precise speed and torque regulation.
Product Details
Product Specifications
Rated Power: 200kW
Power Supply Voltage: Threephase 380480V
Rated Current: 380A
Output Frequency Range: 0.2400Hz
Control Modes: V/F Control, Vector Control (with/without sensor)
Communication Interface: RS485, supports Modbus protocol
Protection Rating: IP20
Operating Temperature Range: 10°C to +50°C
Product Features
1. Efficient Vector Control: This Fuji VFD supports sensorless vector control, delivering precise speed and torque control for complex load conditions.
2. Energy Optimization: Builtin energysaving algorithms automatically adjust output power based on load requirements, making this vfd drives highly efficient.
3. MultiFunction Protection: Includes overload, overheating, overvoltage, undervoltage, and shortcircuit protection to ensure safe operation of the VFD.
4. UserFriendly Design: Equipped with an LCD display and intuitive interface for easy parameter setup and fault diagnosis.
5. Modular Design: Supports expansion modules such as braking units and communication modules to meet diverse application needs.
Application Scenarios
Fan and Pump Control: Achieves energy savings and extends equipment lifespan by precisely adjusting speed with this vfd drives.
Conveyor Systems: Provides smooth start and stop control, reducing mechanical stress.
Compressor Applications: Ensures compressors operate within their efficient range, lowering energy consumption and maintenance costs.
Heavy Machinery: This Fuji VFD meets high torque and lowspeed operation requirements, enhancing equipment performance.
Usage Instructions
Installation and Wiring
1. Choose a wellventilated, dustfree, and noncorrosive environment for installing the VFD to ensure proper heat dissipation.
2. Strictly follow the wiring diagram in the manual to connect power lines, motor lines, and signal lines, ensuring correct phase sequence.
3. Ensure proper grounding of the vfd drives in compliance with local electrical safety standards.
Parameter Configuration
1. Set basic parameters such as rated power, voltage, and current based on the motor nameplate.
2. Select the appropriate control mode (e.g., V/F control or vector control) according to application requirements.
3. Configure advanced functions like PID control or multispeed operation to meet specific needs.
Maintenance and Inspection
1. Regularly clean dust from the heat sink and fan to ensure the cooling system of the Fuji VFD functions properly.
2. Check the connections of power and signal lines to avoid loose contacts.
3. Periodically verify parameter settings to ensure they align with actual application requirements.
Precautions
1. Avoid using the vfd drives in hightemperature, highhumidity, or strong electromagnetic interference environments.
2. Ensure stable power supply voltage to prevent damage to the VFD.
3. Avoid contact with live parts during operation to ensure operator safety.
Frequently Asked Questions (FAQ)
1. How to Perform Motor AutoTuning for the FRN200G1S4C Inverter?
Motor autotuning is a critical step to ensure compatibility between the vfd drives and the motor. First, input the motor’s nameplate parameters, such as rated power, voltage, and current. Then, initiate the autotuning process, during which the Fuji VFD injects current into the motor to measure its characteristics. Once completed, the inverter automatically adjusts control parameters to ensure optimal motor performance.
2. How to Configure the Communication Interface of This Device?
The VFD supports the RS485 communication interface with builtin Modbus protocol. When configuring the interface, first connect the shielded cable and ensure proper grounding of the shield. Then, set the vfd drives’s communication address, baud rate, data bits, and stop bits to match the settings of the host system.
3. How to Select the Power Range for This Frequency Inverter?
When selecting the power range, consider the motor’s rated power and load characteristics. For heavyduty or highstarting torque applications, choose a Fuji VFD with a slightly higher power rating than the motor. Additionally, evaluate the device’s overload capacity to ensure it can handle shortterm overload demands.
4. What is the Cooling Method for This Equipment?
The vfd drives uses forced air cooling with an integrated cooling fan. During installation, ensure sufficient surrounding space for airflow and regularly clean dust from the fan and heat sink to maintain cooling efficiency.
5. How to Avoid Electromagnetic Interference with This Device?
The VFD includes an EMC filter to effectively suppress electromagnetic interference. During wiring, avoid routing signal lines close to power lines and use shielded cables for signal connections. Additionally, ensure proper grounding of the equipment in compliance with electrical safety standards.
6. What Protection Functions Does This Frequency Inverter Offer?
The Fuji VFD provides multiple protection functions, including overload, overheating, overvoltage, undervoltage, shortcircuit, and phase loss protection. When an abnormality is detected, the device automatically shuts down to protect the motor and equipment from damage.
7. How to Perform Regular Maintenance on This Equipment?
Regularly inspect the vfd drives’s exterior for damage and clean dust from the heat sink and fan. Check the connections of power and signal lines for tightness and verify that parameter settings align with actual application requirements.
8. What Should Be Considered During Installation?
Choose a wellventilated and dustfree environment for installation, and ensure the VFD is mounted vertically for proper heat dissipation. When connecting power lines, ensure correct phase sequence and proper grounding of the equipment.
9. How to Choose the Control Mode for This Device?
Select the control mode based on application requirements. For highprecision speed and torque control, choose vector control mode; for constant speed control, opt for V/F control mode. After selection, adjust related parameters according to specific needs.
10. How to Set the Frequency Reference Channel for the Inverter?
The frequency reference can be set via the panel, external analog signals, or digital signals. Ensure the stability of the signal source and configure related parameters, such as input range and frequency range, based on the selected method.
