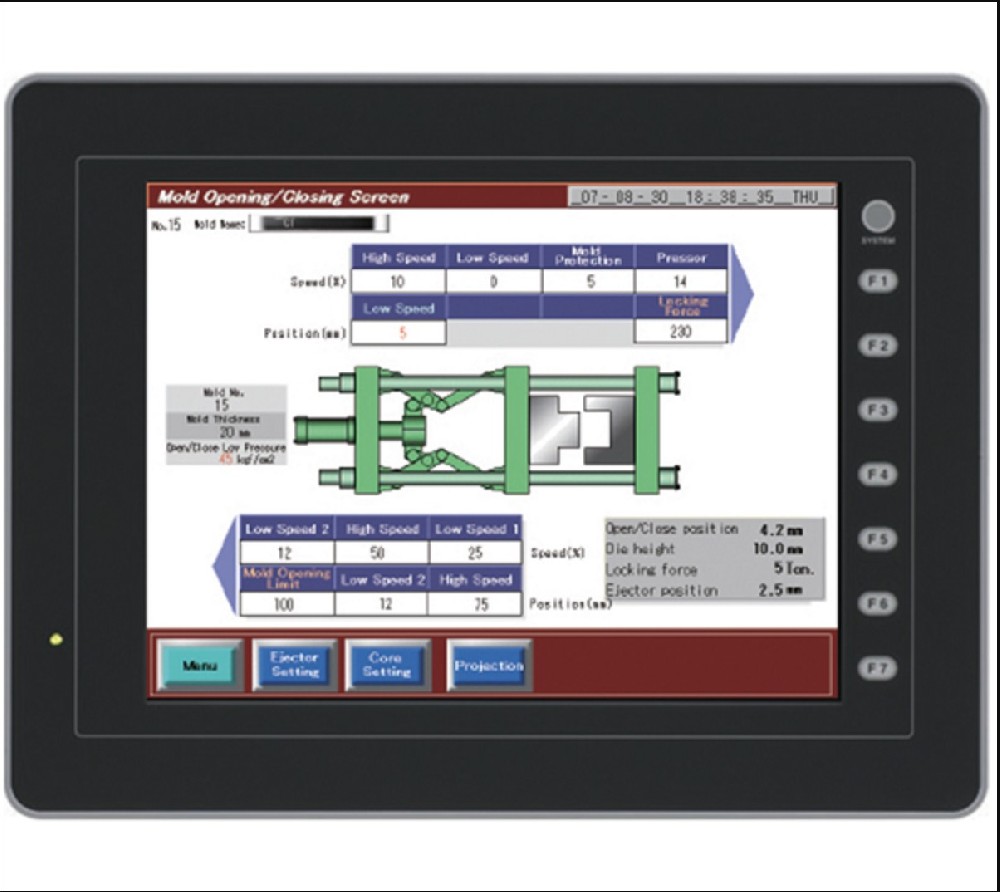

The Fuji Electric V808SDN is a cutting-edge Monitouch HMI that offers advanced industrial automation control solutions. With its 8.4-inch touchscreen interface, the V808SDN provides an intuitive display and robust HMI programming capabilities. It supports multiple PLC communication interfaces, including RS-232C, RS-422/485, and Ethernet, ensuring seamless integration with various automation systems. Additionally, it is compatible with Fuji Electric VFDs, making it a reliable choice for professionals in industrial automation.
Product Features
High-Resolution Display: The V808SDN features an 8.4-inch TFT color LCD display with a resolution of 640×480, supporting 65,536 colors. This high-resolution display provides clear and detailed image display, meeting the needs of complex industrial scenarios.
Multiple Communication Methods: The V808SDN supports various communication interfaces and protocols, enabling communication with different brands and models of PLCs and automation equipment.
Powerful Programming Functionality: Equipped with rich programming functions, the V808SDN supports multiple programming languages, facilitating user customization based on actual needs.
Reliability and Durability: Made from high-quality materials and advanced manufacturing processes, the V808SDN ensures reliability and durability in harsh industrial environments.
Application Scenarios
Industrial Automation: The V808SDN is used for controlling and monitoring various equipment on the production line, such as robotic arms, conveyors, and machining centers, to improve production efficiency and product quality.
Energy Management: In energy management systems, the V808SDN is used to monitor and control the operation of power equipment, achieving optimized energy distribution and management.
Environmental Control: In HVAC, water treatment, and other fields, the V808SDN is used to control and regulate environmental parameters such as temperature, humidity, and flow rate.
Food Processing: In the food processing industry, the V808SDN is used to control and monitor the operation of production equipment, ensuring the hygiene and safety of the food processing process.
Usage Instructions
Installation and Wiring: Ensure the installation environment is well-ventilated, dust-free, and free of corrosive gases. Follow the manual for correct wiring of power, signal, and communication lines.
Parameter Settings: Set parameters according to actual application needs through the touchscreen, including communication, display, and control parameters.
Programming and Debugging: Use Fuji's programming software to write control programs based on the device's functional requirements and conduct debugging.
Maintenance and Inspection: Regularly inspect the device's appearance and connections, clean the fan and heat sink to ensure normal operation.
Precautions
Environmental Conditions: Avoid using in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent performance degradation and reduced lifespan.
Power Requirements: Ensure stable power voltage to avoid damage to the device from voltage fluctuations.
Safe Operation: Avoid contact with live parts during operation to ensure operator safety.
Frequently Asked Questions (FAQ)
How to Perform Initial Setup of the Touchscreen?
Importance of Initialization: Proper initialization is fundamental to ensure the touchscreen operates correctly and helps users quickly become familiar with the device's interface and functions.
Initialization Steps: Follow the manual to connect power, set up communication, and configure basic parameters during the first use. Ensure all connections are correct and perform a simple function test.
Precautions: Check the power voltage and communication interface connections during initialization to avoid operational issues.
How to Configure Communication Interfaces for the V808SDN Touchscreen?
Interface Types: The V808SDN supports multiple communication interfaces, including RS-232C, RS-422/485, and Ethernet. Choose the appropriate interface based on your needs.
Configuration Method: Set parameters such as baud rate, data bits, and stop bits according to the communication protocol used. Ensure the touchscreen's communication parameters match those of the connected device.
Communication Testing: Test communication after configuration to ensure the touchscreen can communicate with the connected device. If communication fails, check the communication lines and parameter settings.
How to Select the Display Resolution for the V808SDN Touchscreen?
Importance of Resolution: Display resolution determines the clarity and detail of the images on the touchscreen. Choosing the right resolution improves the readability of the interface and user experience.
Selection Method: Choose the appropriate resolution based on actual application needs and the complexity of the display content. The V808SDN supports multiple resolution settings, which can be adjusted as needed.
Precautions: Ensure the display content is complete and readable when selecting the resolution. Avoid improper resolution settings that may cause distorted or incomplete displays.
How to Replace the Backup Battery of the V808SDN Touchscreen?
Role of Backup Battery: The backup battery preserves important data and settings during power outages, ensuring the device can quickly resume operation upon re-powering.
Replacement Steps: Ensure the device is powered off. Follow the manual to carefully remove the battery cover, take out the old battery, and install the new one.
Precautions: Avoid damaging other internal components during battery replacement. Test the device after replacing the battery to ensure it functions correctly.
How to Avoid Electromagnetic Interference with the V808SDN Touchscreen?
Impact of Electromagnetic Interference: Electromagnetic interference can cause abnormal display or communication failures, affecting the device's normal operation.
Avoidance Methods: Ensure proper grounding of the device, use shielded cables for communication lines, and avoid placing signal lines near power lines.
Precautions: Regularly inspect the device's grounding and communication lines to ensure they are securely connected and reduce the likelihood of electromagnetic interference.
How to Calibrate the Touchscreen of the V808SDN Touchscreen?
Importance of Calibration: Touchscreen calibration ensures accurate touch precision, improving operational accuracy and efficiency.
Calibration Steps: Follow the manual to calibrate the touchscreen when first used or if deviations occur. Typically, a calibration interface will appear on the screen, and you should follow the prompts to complete the process.
Precautions: Ensure the device is in a stable operating state during calibration and avoid calibrating while the device is in operation.
How to Perform Regular Maintenance on the V808SDN Touchscreen?
Importance of Maintenance: Regular maintenance extends the device's lifespan and ensures stable operation.
Maintenance Content: Regularly clean the device surface and heat sink, check the communication lines and power connections for solidity, and inspect the touchscreen's display quality and touch sensitivity.
Precautions: Ensure the device is powered off during maintenance to prevent damage to the device and potential harm to the operator.
How to Replace the Screen Protector of the V808SDN Touchscreen?
Role of Screen Protector: The screen protector prevents scratches and dirt on the touchscreen, extending its lifespan.
Replacement Steps: Clean the screen surface thoroughly before replacing the protector. Carefully remove the old protector and apply the new one to the screen.
Precautions: Avoid scratching or damaging the screen during the replacement process. Ensure the new protector is applied smoothly without bubbles or wrinkles.
How to Choose the Control Mode for the V808SDN Touchscreen?
Control Mode Selection: Choose the appropriate control mode based on actual application needs. The V808SDN supports multiple control modes, such as direct and indirect control.
Mode Characteristics: Direct control mode is suitable for simple operations, while indirect control mode is ideal for complex control logic and multi-device control.
Precautions: After selecting the control mode, configure the parameters according to specific application needs to achieve the best control effect.
How to Interpret Fault Codes of the V808SDN Touchscreen?
Role of Fault Codes: Fault codes help users quickly identify the cause of device failures, facilitating timely repairs and troubleshooting.
Interpretation Method: When a fault occurs, the screen displays a corresponding fault code. Refer to the fault code table in the manual to find the cause and solution.
Precautions: Follow the manual's guidance when handling faults to avoid further damage to the device. If you cannot resolve the issue independently, contact technical support promptly.
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
