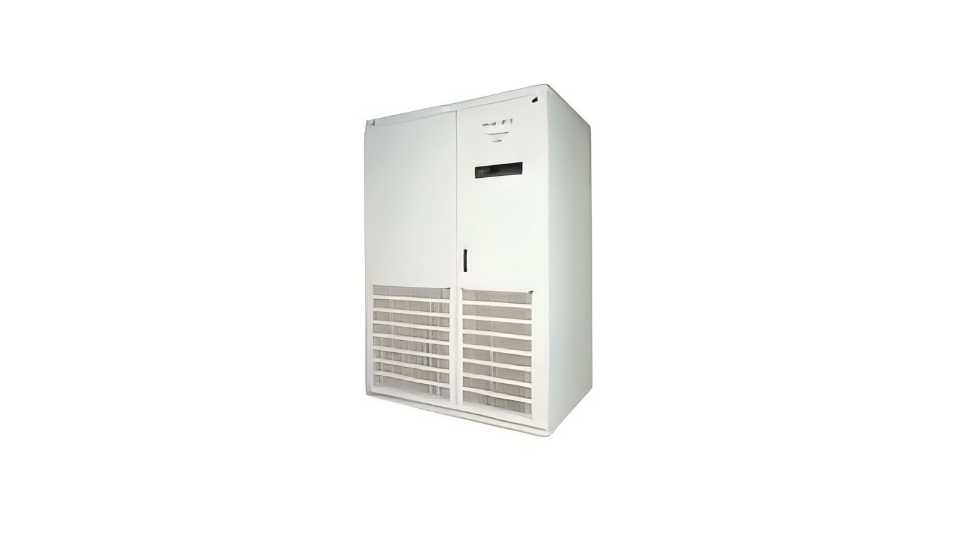

With a IPM power module, to control stable electric power supply, the Fuji Electric UPS6000D-3/500 is a high-power-density online uninterruptible power supply system designed for critical power applications. Renowned for its superior performance, high reliability, and flexibility, this UPS is widely used in data centers, industrial control systems, and commercial facilities. Here's a detailed description of the key parameters and features, as well as application scenarios and usage instructions for this product.
Product Specifications
Model and Capacity: UPS6000D-3/500, with a rated capacity of 500kVA.
Input Parameters: Voltage 200V±10%, frequency 50 or 60 Hz ±5%, harmonic current up to 5%, power factor minimum 0.98.
DC Circuit: Rated voltage 360V, voltage fluctuation range 288～414V.
Output Parameters: Voltage 200, 208, 210, 220 (only for 50Hz), 230 (only for 60Hz), 380, 400, 415, 440V, frequency same as input, load power factor 0.7 (lag) to 1.0.
Product Features
Voltage Accuracy: Within ±1.0%.
Transient Voltage Fluctuations: Depending on load and input voltage change conditions, fluctuations range from ±1% to ±5%.
Voltage Waveform Distortion: Maximum 2.5% for linear loads, maximum 5% for rectified loads.
Voltage Imbalance Rate: Not exceeding ±2% under 100% unbalanced load.
Application Scenarios
Data Centers: Providing stable electric power supply, to output stable electric power supply, it can protect servers and storage devices from power outages.
Industrial Control Systems: With a IPM power module, it ensures continuous operation of production lines and reduce the risk of unexpected downtime.
Commercial Facilities: Provide stable power support for shopping malls, office buildings, and more.
Instructions for Use
1. Installation and Wiring: According to UPS power supply manufactures, to output stable electric power supply, please choose an environment free of dust, corrosive gases, and strong electromagnetic interference, and ensure good heat dissipation for the equipment. Wire strictly according to the wiring diagram in the product manual.
2. Parameter Settings: Including motor parameters, control methods, frequency range, etc., set reasonably based on actual application needs.
3. Maintenance and Inspection: According to UPS power supply manufactures, to output stable electric power supply, please regularly check the appearance of the inverter for damage, dust accumulation on heat sinks, and normal operation of fans.
Precautions
- Avoid using the product in environments with high temperatures, high humidity, and strong electromagnetic interference.
- Ensure stable power supply voltage to prevent damage to the UPS from voltage fluctuations.
- During equipment operation, avoid contact with live parts to ensure the safety of operators.
Frequently Asked Questions (FAQ)
1. How to perform a load test on the product?
Load testing is an important step in assessing the performance of a UPS, simulating actual working conditions to test its stability and reliability.
When conducting a load test, gradually increase the load until it reaches 80% of the rated capacity, then maintain this load level for a period to observe the UPS's response.
Record key parameters such as voltage, frequency, and temperature during the test to evaluate whether the UPS's performance meets expectations.
2. What is the battery backup time for this UPS?
The battery backup time for the product depends on the capacity of the selected battery pack and the load requirements.
With a IPM power module, the UPS systems are designed to accommodate different customer needs by offering battery packs of various capacities to meet different backup time requirements.
Users can choose the appropriate battery pack based on actual needs to ensure sufficient backup time during power outages.
3. How to ensure stable output voltage from the UPS?
Providing stable electric power supply, the product employs advanced control technology to ensure output voltage remains stable within specified limits.
Regular maintenance and inspection of the UPS system, including the status of batteries and electronic components, helps maintain output voltage stability.
Adding voltage regulation devices, such as voltage stabilizers, between the UPS and the load can also improve output voltage stability.
4. Does this UPS support remote monitoring?
Yes, the product supports remote monitoring capabilities, allowing users to monitor the status and performance of the UPS in real-time over the network.
By installing the appropriate monitoring software and hardware, such as SNMP cards, users can monitor the operation of the UPS from a remote location.
Remote monitoring helps identify and address potential issues promptly, enhancing system reliability and security.
5. What is the maintenance cycle for the UPS?
The maintenance cycle for a UPS is typically recommended to be every six months or annually, depending on the usage environment and load conditions.
Regular maintenance includes checking the battery status, cleaning fans and heat sinks, and inspecting the functionality of electronic components.
Regular maintenance helps extend the service life of the UPS and ensures it operates correctly when needed.
6. How to replace the UPS batteries?
Before replacing the batteries, ensure the UPS is turned off and disconnected from the power supply to ensure safety.
Follow the manufacturer's guidance manual to remove the old batteries and install the new battery pack step by step.
After replacing the batteries, reconfigure the UPS system to ensure the new batteries function properly.
7. Does this UPS support parallel operation?
Yes, the product supports parallel operation, allowing multiple UPS units to work together to provide higher power and redundancy.
Parallel operation can enhance system reliability, ensuring that if one unit fails, the others can take over the load.
When setting up parallel operation, ensure all UPS units have consistent parameter settings to maintain system stability.
8. How to prevent UPS overload?
Avoid connecting loads exceeding the UPS's rated capacity to prevent overload.
Regularly check the UPS load situation to ensure the load is within the UPS's tolerance.
Use overload protection devices, such as overload relays, to automatically cut off power when the load exceeds the rated value, protecting the UPS.
9. What is the noise level of this UPS power?
The product is designed with noise control in mind, and its noise level is typically below industry standards.
The noise level depends on the UPS's operating state, such as load size and fan speed.
To reduce noise, consider installing the UPS in a room with good sound insulation or wrapping the UPS with soundproof materials.
10. How to improve UPS efficiency?
Optimize load matching to ensure the UPS power operates at its most efficient point.
Regularly maintain and clean the UPS to ensure its efficient operation.
Use energy-saving modes, such as ECO mode, to reduce UPS power consumption when the load is low, improving efficiency.
