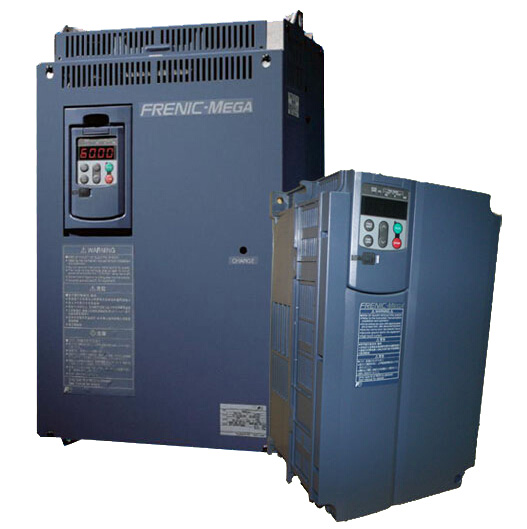

The Fuji FRN22G1S-4C inverter is a high-performance, multifunctional Variable Speed Drive from the Fuji Electric FRENIC-MEGA series, designed to be used with 22kW three-phase asynchronous motors. This Three-phase VFD inverter employs advanced vector control technology to achieve precise speed and torque control, making it ideal for applications that require high precision, fast torque response, and low-frequency output characteristics. With its versatile and reliable performance, the Fuji VFD is a perfect choice for various industrial settings where efficient frequency drive solutions are needed.
Product Specifications
Rated Power: 22kW
Rated Voltage: 380V
Power Supply Phases: Three-phase
Control Method: Sensorless vector control
Output Frequency Range: 0-400Hz
Protection Features: Overload, overheat, overvoltage, undervoltage, short circuit, phase loss, etc.
Communication Interface: RS-485 (supports Modbus protocol)
Environmental Adaptability: Operating temperature range of -10°C to +50°C.
Product Features
High-Precision Control: With vector control technology, the Fuji VFD ensures precise speed and torque control, making it suitable for VFD Motor applications that demand high performance.
Multifunctionality: The Variable Speed Drive supports multiple frequency setting methods, including panel setting, external analog signal input, and digital signal input, allowing flexible control of the Frequency Drive.
Robust Protection: Equipped with various protection functions such as overload, overheat, overvoltage, and undervoltage, this inverter ensures safe operation under varying conditions.
Superior Heat Dissipation: Uses forced air cooling to maintain excellent heat dissipation even under high load, ensuring reliable performance over time.
User-Friendly Interface: The bilingual (Chinese and English) display panel provides easy operation and intuitive parameter setting for efficient control of the Three-phase VFD.
Applications
The Fuji FRN22G1S-4C inverter is widely used in several industries, including:
Industrial Automation: Used in CNC machines, metal processing centers, wire drawing machines, mixers, extruders, and other equipment where precise VFD Motor control is necessary.
HVAC: Perfect for controlling fans and pumps to optimize energy consumption using Variable Speed Drive technology.
Chemical and Pharmaceutical: Ideal for applications where precise speed and torque control are essential.
Food Processing and Packaging: Ensures smooth operation of conveyors, mixers, and other equipment, improving overall production efficiency.
Instructions for Use
Installation and Wiring
Installation Environment: Ensure the inverter is placed in a well-ventilated, dust-free, and non-corrosive environment. Avoid areas with high temperatures, humidity, or electromagnetic interference.
Wiring Requirements: Follow the installation manual to ensure correct connections of power, signal, and motor wires, and ensure proper grounding of the inverter.
Parameter Settings
Basic Parameters: Set motor parameters, control methods, and frequency range according to the specific requirements of the application, ensuring compatibility with the Variable Speed Drive system.
Advanced Functions: Configure advanced functions such as PID control or multi-speed control for more precise control of Frequency Drive operations.
Maintenance and Inspection
Regular Inspection: Check the condition of the heat sink and fan, cleaning dust regularly to ensure proper VFD Motor cooling.
Parameter Verification: Regularly verify that the parameter settings are appropriate for the specific application needs.
Fault Diagnosis: Troubleshoot based on fault codes and resolve any operational issues promptly to maintain the reliability of the Three-phase VFD system.
Common Questions (FAQ)
How to Perform Motor Self-Tuning?
Importance: Self-tuning is a crucial step to ensure the correct performance of the VFD Motor and to match the inverter’s control parameters with the motor's specifications.
Precautions: Make sure the motor and inverter are correctly connected and that the motor is stationary during self-tuning to avoid any damage.
Effect: After self-tuning, the inverter will automatically adjust control parameters to achieve optimal performance.
How to Configure the Communication Interface?
Interface Type: The FRN22G1S-4C supports an RS-485 communication interface with built-in Modbus-RTU protocol, suitable for communication with external control systems.
Connection Requirements: Use shielded cables for communication lines, ensure proper grounding of the shielding layer, and minimize electromagnetic interference to ensure stable operation of the Three-phase VFD.
Parameter Settings: Set communication address, baud rate, data bits, stop bits, etc., according to protocol requirements.
How to Select the Inverter's Power Range?
Based on Load Requirements: Choose the appropriate power range according to the actual load of the motor. For heavy loads, select a slightly higher power inverter.
Safety Factor: It is recommended to choose an inverter with a slightly higher power than the motor's rated power to handle load fluctuations.
Overload Capability: Although the inverter has some overload capability, long-term overload can affect its lifespan.
What is the Cooling Method?
Cooling Method: Uses forced air cooling with an internal fan to ensure proper heat dissipation for the VFD Motor.
Installation Requirements: Ensure sufficient space around the inverter to avoid poor ventilation.
Maintenance: Regularly clean dust from the fan and heat sink to maintain effective cooling and prevent overheating of the Variable Speed Drive.
How to Avoid Electromagnetic Interference?
Built-in Filter: The inverter has an integrated EMC filter that meets electromagnetic compatibility standards.
Wiring Precautions: Avoid placing signal wires close to power wires, and use shielded cables to minimize noise and interference with the Frequency Drive operation.
Grounding Measures: Ensure proper grounding of the equipment and its components to reduce electromagnetic disturbances.
What Protection Functions are Available?
Overload Protection: The Fuji VFD automatically reduces frequency or shuts down when the load exceeds the rated value, protecting both the inverter and VFD Motor.
Overheat Protection: Built-in temperature sensors automatically shut down the inverter when the temperature exceeds safe limits.
Overvoltage and Undervoltage Protection: The inverter automatically shuts down if the power supply voltage is abnormal, preventing damage to the Three-phase VFD.
How to Perform Regular Maintenance?
Appearance Inspection: Check for any damage to the inverter's enclosure and tighten any loose screws.
Cooling System Maintenance: Clean the fan and heat sink regularly to ensure optimal cooling performance.
Electrical Connection Check: Verify that the power and signal wire connections are secure to prevent loose contacts that could disrupt Variable Speed Drive operation.
What Precautions Should be Taken During Installation?
Installation Location: Choose an environment with good ventilation, free from dust and corrosive gases to ensure optimal performance of the Fuji VFD.
Installation Method: Install the inverter vertically to avoid vibration, and ensure there is sufficient space for air circulation.
Power Connection: Ensure that the power cable meets the required specifications and is properly grounded to prevent electrical hazards.
How to Choose the Control Mode?
Based on Application Needs: For high-precision control, select vector control mode; for constant speed control, select V/F control mode.
Mode Characteristics: Vector control offers high precision, while V/F control is simpler and easier to use, providing an option for less complex Frequency Drive applications.
Parameter Settings: Set relevant parameters based on the selected control mode to ensure optimal performance for the Three-phase VFD system.
How to Set the Frequency Setting Channel?
Setting Methods: Frequency can be set through the panel, external analog signal, or digital signal input. This offers flexibility in controlling the VFD Motor's speed.
Signal Source Requirements: Ensure the signal source is stable and resistant to interference to ensure accurate frequency control.
Parameter Configuration: Configure relevant parameters based on the selected frequency setting method.
