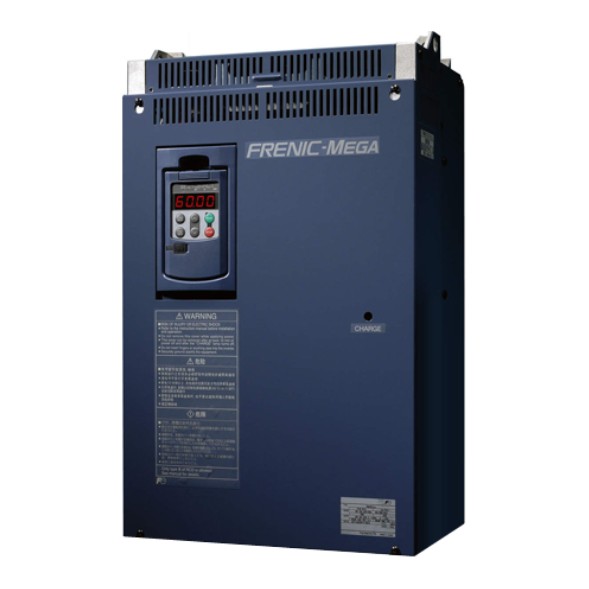

FUJI FRN55G1S-4C VFDs AC Drive Motor And Inverter

The FUJI FRN55G1S-4C VFDs (Variable Frequency Drives) is a high-performance AC drive designed for motor and inverter applications. It is part of the G1S series and is ideal for use with 55kW three-phase asynchronous motors and inverters. This inverter utilizes advanced ···

  • Contact Us Contact On WhatsApp
  • 010-64225983

    +8613811814778

    info@zhongpingtech.com

    Building 26, Liyuan Community, Chaoyang District, Beijing, China

The FUJI FRN55G1S-4C VFDs (Variable Frequency Drives) is a high-performance AC drive designed for motor and inverter applications. It is part of the G1S series and is ideal for use with 55kW three-phase asynchronous motors and inverters. This inverter utilizes advanced vector control technology to offer precise speed and torque control for various industrial environments.

FUJI FRN55G1S-4C VFDs AC Drive Motor And Inverter

Product Specifications

Power range: 55kW

Supply voltage: Three-phase 380-480V

Control method: Voltage vector control, providing high starting torque at low speeds

Frequency range: 0-400Hz

Protection features: Overload, overheat, overvoltage, and undervoltage protection

Communication interface: Supports RS485 interface with Modbus protocol communication

Environmental adaptability: Operates in ambient temperatures ranging from -10°C to +50°C

Product Features

High-performance vector control: Utilizes advanced vector control algorithms to deliver up to 200% starting torque at 0.3Hz, even at low speeds, ideal for motor and inverter applications.

Rapid response: Capable of 600 forward/reverse response cycles per second (frequency response of 600Hz), suitable for high-precision, fast-response applications in AC drive systems.

User-friendly design: Equipped with bilingual (Chinese and English) operation panels for intuitive parameter setting and monitoring of motor and inverter configurations.

Superior cooling performance: Forced air cooling ensures stable operation in high-temperature environments for VFDs.

Flexible configuration: Optional accessories such as braking units and DC reactors can be selected based on specific needs in AC drive setups.

Applications

Industrial automation: Suitable for CNC machines, metal processing centers, and other equipment requiring high precision in speed control and fast torque response, utilizing VFDs and motor and inverter systems.

General machinery: Used in wire drawing machines, mixers, extruders, and winding machinery where AC drive technology is essential.

Fans and pumps: In HVAC, water treatment, and chemical industries, it regulates the speed of fans and pumps to achieve energy savings, controlled by motor and inverter systems.

Conveyors and hoists: In logistics, packaging, and food processing industries, it controls the start, stop, and speed regulation of conveyor belts using AC drive and VFDs.

Instructions for Use

Installation and Wiring

Installation environment: Choose a well-ventilated, dust-free, and non-corrosive gas environment. Avoid high temperatures, high humidity, and strong electromagnetic interference, especially around AC drive systems.

Wiring requirements: Follow the manual strictly to ensure correct connections of power, signal, and motor and inverter cables. Pay attention to the specifications and phase sequence of the power cables.

Grounding protection: Ensure proper grounding of the AC drive equipment to comply with electrical safety standards.

Parameter Settings

Basic parameters: Set motor and inverter parameters, control methods, frequency range, etc., according to actual needs in the AC drive configuration.

Advanced functions: Configure features such as PID control and multi-speed control based on application scenarios for VFDs.

Maintenance and Inspection

Regular inspection: Check the appearance, heat sinks, fans, and other components in the AC drive. Clean dust to ensure good heat dissipation.

Parameter verification: Regularly verify motor and inverter parameter settings to ensure they match actual requirements.

Fault diagnosis: Troubleshoot and resolve issues based on fault codes in the VFDs system.

Precautions

Environmental conditions: Avoid using AC drive systems in high-temperature, high-humidity, and strong electromagnetic interference environments.

Power requirements: Ensure stable supply voltage to prevent damage from voltage fluctuations in motor and inverter circuits.

Safe operation: Avoid contact with live parts during operation and disconnect power during maintenance of VFDs.

Frequently Asked Questions (FAQ)

1. How to perform motor auto-tuning on this inverter?

Importance: Motor auto-tuning is a critical step to ensure compatibility between the inverter and the motor and inverter, enhancing control accuracy and system stability.

Precautions: During auto-tuning, the inverter injects current into the motor. Ensure the motor is properly connected and remains stationary.

Effect: After auto-tuning, the inverter automatically adjusts control parameters based on motor and inverter characteristics for optimal performance.

2. How to configure the communication interface?

Interface type: Supports RS485 interface with Modbus protocol communication, suitable for various AC drive systems.

Connection requirements: Use shielded cables and ensure proper grounding.

Parameter settings: Configure communication address, baud rate, and other settings according to system requirements.

3. What is the cooling method used in this inverter?

Cooling method: Forced air cooling for efficient temperature regulation in AC drive applications.

Installation requirements: Ensure sufficient space for proper air circulation.

Maintenance: Regularly clean dust from fans and heat sinks to maintain optimal cooling efficiency in VFDs.

4. How to minimize electromagnetic interference?

Built-in filters: Includes an EMC filter that meets electromagnetic compatibility standards, ensuring smooth AC drive operation.

Wiring precautions: Avoid placing signal cables close to power cables and use shielded cables.

Grounding measures: Ensure proper grounding of the motor and inverter system.

5. What protection features does this inverter offer?

Overload protection: Automatically reduces frequency or shuts down when load exceeds rated value.

Overheat protection: Internal sensors shut down the inverter if temperature exceeds limits.

Overvoltage and undervoltage protection: Automatically shuts down in case of abnormal supply voltage.

6. How to perform regular maintenance?

Appearance inspection: Check for any damage or abnormalities in the AC drive system.

Cooling system maintenance: Clean dust from fans and heat sinks to prevent overheating.

Electrical connection check: Ensure all power and signal cables are securely connected.

7. How to set the frequency reference channel?

Setting methods: Frequency can be set via the panel, external analog signals, or digital signals.

Signal source requirements: Ensure the signal source is stable and resistant to interference.

Parameter configuration: Set input range and corresponding frequency based on selected method.

8. What should be noted during installation?

Installation location: Choose a well-ventilated, dust-free, and non-corrosive gas environment.

Installation method: Install vertically to ensure proper cooling of the VFDs.

Power connection: Verify cable specifications and grounding for safe operation.

9. How to select the control mode?

Application requirements: Choose between V/F control and vector control based on system needs.

Mode characteristics: Vector control is ideal for high-precision applications, while V/F control is suitable for general constant-speed control.

Parameter settings: Adjust settings according to the selected mode for the motor and inverter system.

10. What are common faults and how to troubleshoot them?

Overload fault: May be caused by excessive load or motor failure in the AC drive system.

Overheat fault: Check if the cooling system is functioning properly to prevent inverter damage.

Communication fault: Inspect communication lines and parameter settings.
