To provide a stable UPS uninterrupted power supply, the UPS Fuji Electric launched is crucial, Fuji Electric's UPS7700F 3/200 uninterruptible power supply system stands out with its excellent performance and reliable power protection, making it an ideal choice for industrial automation and data centers. This article will provide a detailed introduction to the product parameters, features, application scenarios, usage instructions, and precautions of the Fuji UPS7700F 3/200, as well as comprehensive answers to common user questions.

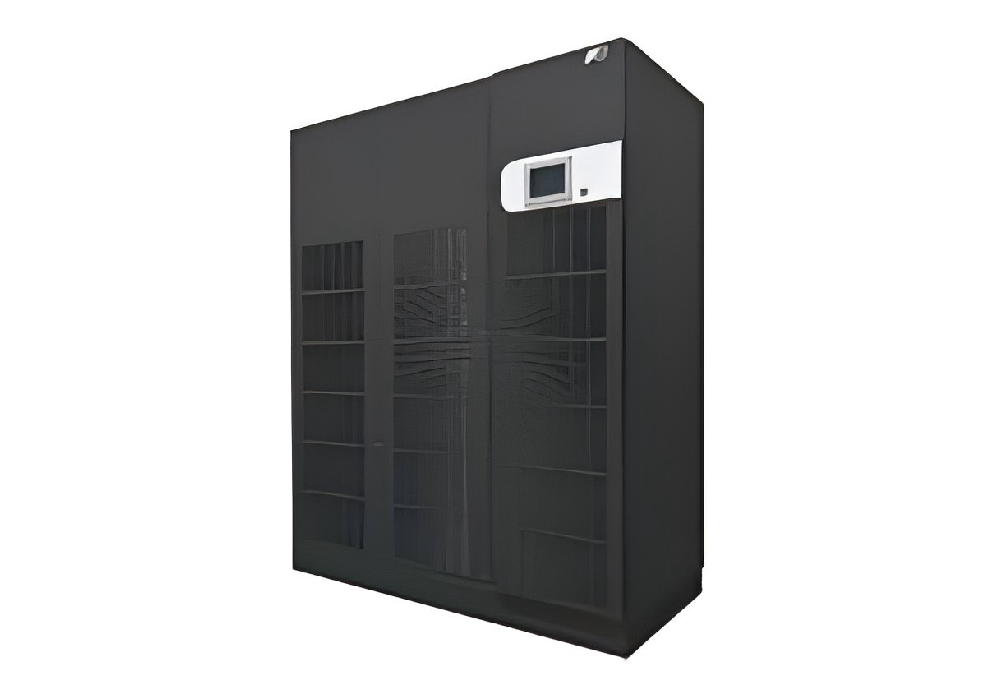

The Fuji UPS7700F 3/200 is an online uninterruptible power supply system with the following technical specifications:
Rated Capacity: 200/160 kVA
Input Voltage: 380, 400, 415V ±15%
Frequency: 50 or 60Hz ±5%
Phase and Wire Number: Three-phase, four-wire
Overload Capability: 125% for 10 minutes, 150% for 1 minute
Voltage Adjustment Range: ±5% (at rated load)
Product Features
1. All-IGBT Design: The UPS Fuji Electric designed achieves high input power factor and low harmonic current.
2. System Compatibility: Supports various system configurations, such as bypass simultaneous no-interrupt switch systems, standby redundancy systems, etc.
3. High Efficiency: The comprehensive efficiency is over 91%.
4. High Performance: Adapts to a wide range of voltage fluctuations, ensuring uninterrupted power supply.
5. High Reliability: Employs IGBT components, reducing the number of parts and improving maintainability.
Application Scenarios
The Fuji UPS7700F 3/200 is widely used in the following scenarios:
Data Centers: As a UPS uninterrupted power supply, the UPS Fuji Electric designed provides stable power protection for servers and network equipment.
Industrial Automation: Ensures that key equipment on production lines is not affected by power fluctuations.
Medical Equipment: Offers uninterrupted power for critical medical devices in hospitals.
Usage Instructions
1. Installation and Wiring: Choose an environment free of dust and corrosive gases, and ensure the correct connection of power cables, signal cables, and motor cables.
2. Parameter Settings: Set up according to actual application needs, such as motor parameters and control methods.
3. Maintenance and Inspection: Regularly check the appearance of the equipment, cooling systems, and verify parameter settings.
Precautions
1. Environmental Conditions: Avoid using in high-temperature, high-humidity, and strong electromagnetic interference environments.
2. Power Requirements: Ensure stable power supply voltage to prevent voltage fluctuations from damaging the equipment.
3. Safe Operation: Avoid contact with live parts during equipment operation to ensure operator safety.
Common Questions FAQ
1. How to perform a battery self-test on the UPS Fuji Electric designed?
The battery self-test of the UPS is an important step to ensure the health status of the battery. Users can initiate the self-test program through the UPS front panel or remote monitoring system.
During the self-test, the UPS simulates a power outage to test the battery's discharge capability and recovery time.
After the self-test, the system displays the battery status, including voltage, capacity, and expected lifespan, helping users to replace aging batteries in a timely manner.
2. What is the input power factor of the UPS Fuji Electric designed?
The input power factor of the Fuji UPS7700F 3/200 is as high as 0.98 or above, which means it has minimal power loss and high energy efficiency when drawing power from the grid.
A high power factor helps reduce the load on the power grid and decreases energy waste.
When choosing a UPS, users should consider the power factor to ensure the energy efficiency and stability of the system.
3. How to choose the right UPS capacity?
Choosing the right UPS capacity requires considering the total power of the load and potential future expansion needs.
It is recommended to select a UPS capacity slightly larger than the total power of the load to handle sudden power demands.
Users should also consider the peak factor of the UPS to ensure stable operation during peak load times.
4. What is the maintenance cycle for the UPS?
The maintenance cycle for the UPS is typically every six months or once a year, depending on the usage environment and load conditions.
Regular maintenance includes checking the battery status, cleaning the cooling system, and inspecting circuit boards.
Maintenance should be carried out by professional personnel to ensure the safety and performance of the UPS.
5. What is the output voltage range of the UPS?
The output voltage range of the Fuji UPS7700F 3/200 is ±5% at rated load.
This means that even in the case of power fluctuations, the UPS can provide a stable voltage output.
Users should ensure that the load equipment can operate normally within the output voltage range of the UPS.
6. How to improve the efficiency of the UPS?
Improving the efficiency of the UPS can be achieved by optimizing load matching, regular maintenance, and using energy-saving modes.
Optimizing load matching means that the UPS load should not be in a low-load or overload state for extended periods.
Energy-saving modes can reduce the power consumption of the UPS when it is idle.
7. How does the UPS overload protection work?
The overload protection of the UPS activates when the load exceeds the rated value to protect the UPS and the load equipment from damage.
When the load exceeds 125%, the UPS limits the output power to prevent overloading.
If the load exceeds 150%, the UPS will automatically shut down until the load returns to normal.
8. How to extend the battery life of the ups uninterruptible power supply?
Extending the battery life of the UPS can be achieved by avoiding deep discharges, maintaining suitable environmental temperatures, and regular maintenance.
Deep discharges shorten the battery life, so it is important to avoid running the UPS on low battery for extended periods.
Environmental temperature significantly affects battery life and should be kept within the recommended range.
9. What is the noise level of the UPS?
The noise level of the Fuji UPS7700F 3/200 varies depending on the model, ranging from 68dB(A) to 76dB(A).
Noise level is an important indicator of the impact of UPS operation on the surrounding environment.
Users should consider the noise level when choosing a UPS, especially in noise-sensitive environments.
10. How does the UPS perform in high-altitude areas?
The UPS may be affected by low air pressure and low temperatures in high-altitude areas, leading to reduced cooling efficiency.
Users should ensure adequate cooling measures and regularly check the cooling system when using the UPS in high-altitude areas.
The Fuji UPS7700F 3/200 is suitable for environments up to 1000 meters in altitude, and users should adjust usage conditions according to the actual altitude.
