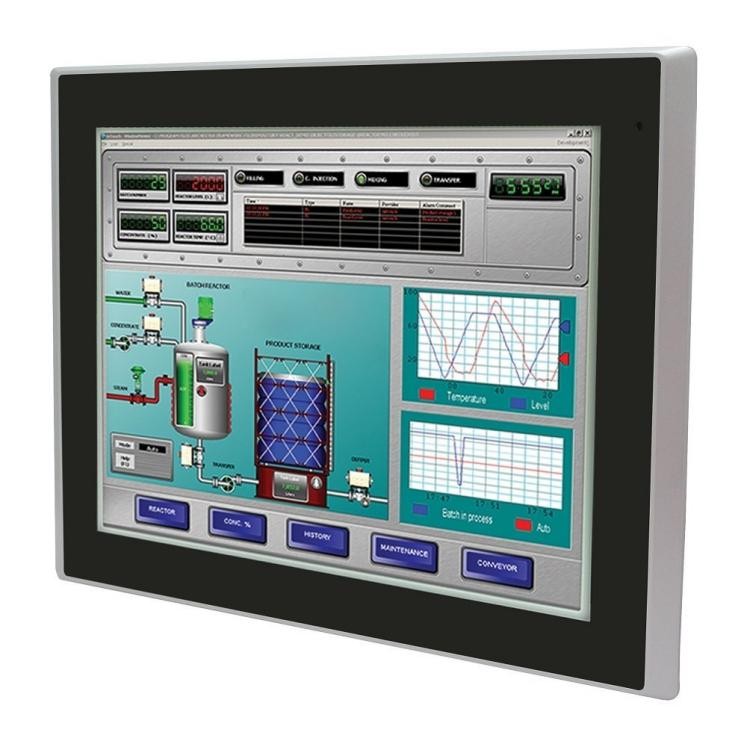

Fuji Electric Company's V9 Series V9101iW is a high-performance Human-Machine Interface (HMI) device paired with Fuji HMI software. Especifically tailored for the industrial automation sector. It is widely used for monitoring and controlling production line equipment, machine status, and other automated processes. The device features a high-resolution 10.1-inch WSVGA display with a resolution of 1024×600, supporting 16.77 million colors, ensuring clear and detailed image and data presentation.
Product Specifications
Display: 10.1-inch TFT color display with LED backlighting, resolution of 1024×600.
Communication Interfaces: Supports multiple communication methods, including 3-channel serial interfaces, SD card slot, USB A/mini-B ports, and dual 100Mbps/10Mbps Ethernet interfaces.
Storage Capacity: Built-in 64MB flash memory and 800KB backup storage.
Power Requirements: AC/DC power supply, with voltage tolerance of AC ±15%~+10% and DC ±10%.
Operating Environment: Operating temperature range of -10°C to 60°C, humidity below 85% RH (non-condensing), and altitude below 2000 meters.
Product Features
High Resolution and Contrast: The 10.1-inch display offers high resolution and contrast, ensuring clear visibility of images and data.
Wireless LAN Functionality: Supports wireless LAN connectivity for convenient remote monitoring and data transmission.
VNC Server Function: With VNC server capabilities, users can remotely monitor and operate the touchscreen using tablets or other devices.
Multiple Communication Protocols: Supports mainstream industrial communication protocols such as Modbus RTU and TCP, enabling seamless connections with various PLCs, and automation equipment.Through Fuji HMI software, users can easily configure communication parameters, facilitating efficient data exchange between devices.
Robust Data Storage and Backup: Equipped with a large-capacity internal storage and SD card expansion, facilitating convenient storage and backup of programs and data.
Applications
Fuji Electric Company's V9101iW touchscreen is widely used in the following areas:
Industrial Automation Production Lines: Monitors and controls the operation of equipment on production lines, such as robotic arms and conveyors.
Smart Manufacturing Systems: Fuji Electric Company's HMI serves as a centralized control and data collection interface in smart factories.
Energy Management Systems: Monitors operating parameters of power and water treatment systems to achieve energy optimization.
Food Processing and Pharmaceutical Industries: Ensures precise and compliant production processes in high-hygiene environments by controlling production equipment via the touchscreen.
Installation and Usage Instructions
Installation: Ensure the installation environment is dust-free, free of corrosive gases, and well-ventilated. Use a panel-mounted installation for easy operation and maintenance.
Wiring: Follow the manual strictly to ensure correct connections of power, communication, and signal lines.
Parameter Settings: Configure parameters using the V-SFT software(part of the Fuji HMI software), which supports free online updates for customized user needs.
Maintenance: Regularly clean the device's surface, check the communication interfaces and power connections for stability to ensure long-term stable operation.
Precautions
Environmental Adaptability: Avoid using the device in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent performance degradation.
Power Stability: Ensure stable power supply voltage to avoid damage from voltage fluctuations.
Data Backup: Regularly back up data stored in the memory to prevent loss due to unexpected power outages or device failures.
Common Issues and Solutions
1. Why does the display screen of the V9101iW show color distortion or a white screen?
Possible Causes: These issues may arise from LCD panel driver circuit failures, poor screen cable connections, or motherboard control circuit problems. Excessive screen dust can also cause display anomalies.
Solutions: First, check if the screen connection cables are loose and reseat them. If the problem persists, the LCD panel or motherboard may need replacement. Cleaning the screen surface can also help resolve the issue.
Preventive Measures: Regularly inspect device connections and interfaces to ensure they are secure. Avoid prolonged operation in high-temperature or humid environments.
2. How to connect the V9101iW via Wireless LAN?
Steps: Ensure the touchscreen and computer are on the same wireless network and configure the wireless connection using the V-SFT software.
Precautions: Ensure a stable wireless signal during the connection process to avoid interference.
Application Scenario: Wireless connectivity facilitates remote monitoring and debugging on the production floor, enhancing work efficiency.
3. What to do if the touchscreen function is abnormal?
Possible Causes: Touchscreen functionality issues may be caused by surface dirt, calibration problems, or hardware damage.
Solutions: First, clean the touchscreen surface to remove any dirt or dust. Then recalibrate the touchscreen settings. If the problem remains, the touchscreen hardware may be faulty and require professional repair.
Preventive Measures: Regularly clean the touchscreen surface and avoid prolonged use at high brightness and contrast to reduce screen aging.
4. What to do if the screen of fuji hmi shows bright or dark lines?
Possible Causes: Internal screen wiring faults, flex cable breaks, or poor connections.
Solutions: These issues are typically hardware-related and require repair or replacement of the display.
Preventive Measures: Regularly inspect device connections and interfaces to ensure they are secure. Avoid prolonged operation in high-temperature or humid environments.
5. What to do if the screen has dead pixels or bright spots?
Possible Causes: Damaged pixel points, often due to manufacturing defects or long-term use.
Solutions: While software attempts to repair a few dead pixels (with limited success), most cases require acceptance or display replacement.
Preventive Measures: Avoid prolonged use at high brightness and contrast to reduce screen aging.
6. How to avoid screen flickering?
Possible Causes: Screen flickering may be caused by high-magnetic products near the display or malfunctioning degaussing circuits.
Solutions: Place high-magnetic products (such as low-quality speakers) at least 30cm away from the display or manually perform degaussing. If the image does not noticeably shake during degaussing, the degaussing circuit is likely faulty and requires professional inspection.
Preventive Measures: Use reputable speakers and avoid placing high-magnetic products near the display.
7. What to do if the screen image is distorted or deformed?
Possible Causes: Image distortion may be due to improper display settings or hardware faults.
Solutions: First, check the display settings to ensure correct resolution and refresh rate. If settings are correct, hardware faults may require professional inspection.
Preventive Measures: Regularly check display settings and avoid prolonged use at high brightness and contrast.
8. What to do if the screen goes black?
Possible Causes: Black screens may be due to poor soldering in the filament power supply circuit or host failures.
Solutions: Inspect the filament power supply circuit for poor soldering and repair as needed. If the issue persists, test the display on another confirmed functional host.
Preventive Measures: Regularly inspect device connections and interfaces to ensure they are secure.
9. What to do if the screen colors are abnormal?
Possible Causes: Color anomalies may be due to improper color settings or hardware faults.
Solutions: Adjust using the display's color calibration function or reconnect display cables. If the issue persists, hardware faults may require professional inspection.
Preventive Measures: Regularly check display settings and avoid prolonged use at high brightness and contrast.
10. How to perform firmware upgrades?
Steps: Download the latest firmware using the V-SFT software and follow the on-screen prompts to complete the upgrade.
Precautions: Ensure a stable power supply during the upgrade process to avoid interruptions.
Application Scenario: Firmware upgrades fix known issues, enhance device performance, and ensure long-term stable operation.
