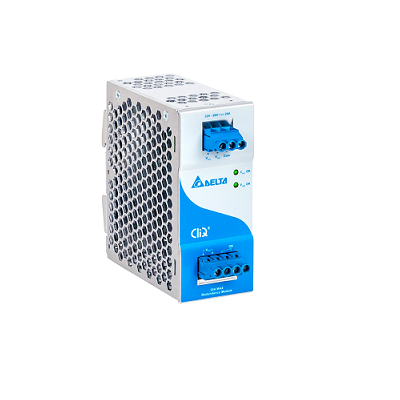

Delta guide module is the best helper for power management solutions. UPS, buffers and redundant modules work perfectly with our rail power supply. The CliQ II buffer module family supports parallel connection for long buffer inches
Product characteristics
** Small buffer inches 250ms @ 24V/20A
Elastic operation buffer voltage mode:
- 22Vdc Fixed mode
- Input voltage -1V Dynamic mode
Parallel connection is supported to buffer inches
Circuit board three anti - adhesive coating to prevent dust and chemical pollutants
ATEX and Class I, Div 2 Certification for Use of Hazardous Places (DRB-24V020ABA)
Product parameter
Output current: 20A
Output voltage: 24V
Output voltage adjustment range: 22-28Vdc
Buffer time: 250ms Min@24V /20A Load, 5s Min@24V /1A Load
Ripple voltage: < 200mVpp @ 25°C, buffering mode
Input voltage: 24Vdc
Input voltage range: 22.8-28.8Vdc
Input current:
Charging Mode: < 0.6A
Discharging Mode: 20A Max
Input power (standby mode) : 2.5W Average
Charging time: less than 30s
Cooling mode: Convection
Sound pressure level (SPL) : < 40dBA
Install Rail: Standard TS35 DIN Rail in accordance with EN 60715
Weight: 0.76 kg (1.68 lb)
