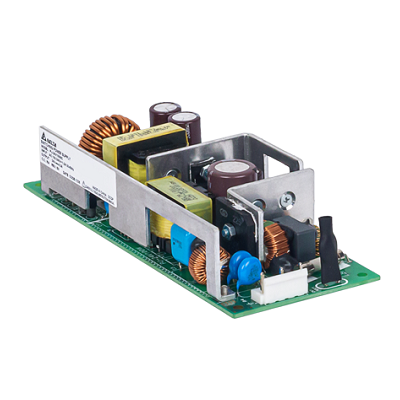

Description: Open-shelf power supplies are available in a variety of rated output voltages and are available in a variety of configuration options. Products and IEC60950-1/62368-1 of the main safety standards. ** The new PJB series has built in high power boost performance, which can maintain a 200% power boost for up to 10 seconds. Product design is under the best industrial footprint standards.
Product characteristics
Universal AC input (85Vac-264Vac)
Low inrush current/low ground leakage current
High conversion efficiency and high power factor are conducive to energy saving
Compliant with harmonic currents IEC/EN 61000-3-2, Class A
PCBA conformal coating protects against chemical and dust pollution
Remote control on/off (100W optional)
** Configuration options: open rack power supply, L frame power supply, closed power supply
Long-lived capacitor
Product parameter
Output current: 8.5A
Output voltage: 12V
Output voltage adjustment range: 10.8-13.2Vdc
Output power: 100W
Line voltage adjustment rate: < 48mV
Load adjustment rate: < 102mV
Capacitive load start-up: 8,000µF Max
Input voltage: 100-240Vac
Input voltage range: 85-264 VAC
Rated input frequency: 50-60Hz
Input frequency range: 47-63Hz
Base/housing: Upper cover SGCC
Cooling mode: Convection
Input: JST B3P5-VH (LF) (SN)
Output: JST B8P5-VH (LF) (SN)
Sound pressure level (SPL) : < 25dBA
Wire: AWG 22-18
Weight:
0.26kg (Open Frame)
0.42 kg (Enclosed) (0.57 lb)
Size:
155 x 62 x 33 mm (Open Frame)
185 x 72 x 45 mm (Enclosed)
6.10" x 2.44" x 1.29" (Open Frame)
7.28" x 2.83" x 1.77" (Enclosed)
Operating temperature: -10°C to +70°C
Storage temperature: -25°C to +75°C
Operating height: 0 to 5,000 Meters (16,400 ft)
Pollution level: 2
Overvoltage category: II
