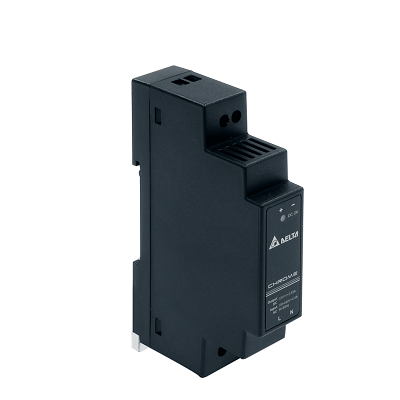

Delta Rail power supply can be cold started at -40°C, the best power boost performance, and achieve SIL3 EN61508 functional safety class. Certain CliQ models also feature intelligent monitoring and are ATEX and Class I, Div 2 certified for use in high-risk locations. The CliQ M Series also meets the safety standards of ABS and DNV-GL to provide the best power supply options for offshore applications.
Product parameter
Weight: 0.06 kg (0.13 lb)
Rated output voltage 12V,24V
Rated output current 0.83A,0.42A
Output power 10W
Line voltage adjustment < 1% value (@90-264Vac, load)
Load adjustment rate < 2% value (@90-264Vac, load)
Start time < 3,000ms @ Rated input (load)
Pressure holding time > 10ms@115Vac,
> 30ms @ 230Vac (Load)
Dynamic response ± 5%@10 - load (overshoot and undershoot output voltage)
Rated input voltage 100-240Vac
Input voltage range 90-264Vac, 125-375Vdc
Rated input frequency 50-60Hz
Input frequency range 47-63Hz
Rated DC input voltage 125-375Vdc
Input current < 0.30A@115Vac, < 0.20A@230Vac
Load efficiency > 82.@115Vac & 230Vac
Inrush current < 15A@115Vac, < 30A@230Vac
Leakage current < 0.25mA@240Vac
Operating temperature -25°C to +71°C
Storage temperature -25°C to +85°C
Power drop > 55°C Power drop 2.5% / °C
Operating Humidity 5 to 95% RH (non-condensing)
Shock resistance test (non-operating condition) IEC 60068-2-27, Half Sine Wave: 4G for a duration of 22ms, 3 shocks for each 3 directions, 9 times in total
Vibration test (non-operating state) IEC 60068-2-6, Sine Wave: 10-500Hz@19.6 m/S² (2G peak); 10 min per cycle, 60 min for all X, Y, Z directions
Electrical UL/cUL listed in UL 508 and CSA C22.2 No. 107.1-01 (File no. E338991)
CEEMC Regulation 2014/30/EU and Low voltage regulation 2014/35/EU
