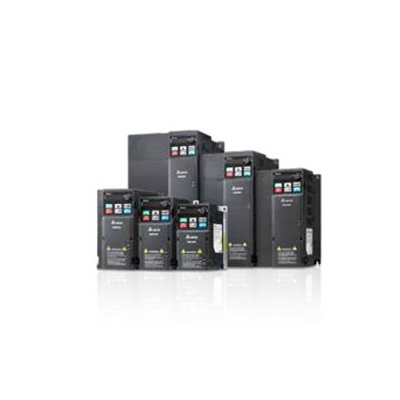

Delta exquisite standard vector control inverter MS300 has the advantages of miniaturization, high function, high reliability, easy installation, etc. The investment of each industrial resource is transformed into a fruitful result. Optimized structure and lock-free screw terminal design provide convenient maintenance process, save installation and maintenance time. Friendly user interface, through the use of choice, can easily complete the parameter setting. Built-in USB function, more rapid parameter replication, improve production efficiency.
Product details
Support induction motor, permanent magnet motor open circuit control
Output frequency range 0 -- 599HZ (standard model)
High frequency 1500HZ output (high speed machine type)
Built-in PLC Programmable Editor (2K STEPS)
Built-in 33KHZ high-speed pulse input terminal X1 (MI7)
Built-in 33KHZ high speed pulse output terminal X1 (DFM)
EMC Filter (Built in/Optional)
TORQUE OFF with safety certification (SIL2/PLD)
Full range of built-in brake crystals
New circuit board coating (IEC 60721-3-3 CLASS 3C2) for enhanced environmental tolerance
5-digit LEDKEYPAD with high brightness (can be externally pulled to the control panel using E/M/B extension cable)
Supports multiple communication interfaces: PROFIBUS DP, MODBUS TCP, ETHERNET/IP, DEVICENET, CANOPEN
Under Normal Duty, overload capacity is 120% of rated output current 60 seconds and 150% of rated output current 3 seconds
Under Heavy Duty, overload capacity is 150%60 s and 200%3 s of rated output current
Number of power phases: three phases
Rated voltage: three-phase AC380-480 (V)
Supply voltage: High voltage
Adaptive motor power: 18.5 (kW)
Filter: Built-in filter
Properties of DC power supply: current type
Control mode: V/F closed loop
Output voltage regulation mode: PAM control
Rated current: 41.5 (A)
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
