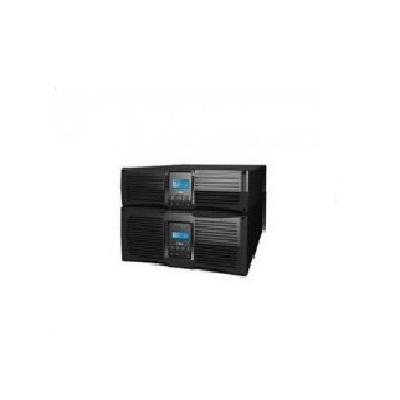

Introduction: RT series is an online UPS power supply with dual conversion frame technology. Through the best technical framework, it provides excellent performance of high power density, high input power factor and low current harmonics. The Amplon RT series is a standard 19-rack UPS designed for data centers, but can also be installed vertically on demand, and has a multi-lingual LCD LCD display that allows users to easily understand the operation status.
Product parameter
Rated voltage 200/208/220/230/240Vac, single phase
Voltage range 100 -- 300Vac (full load)
Input current Harmonic component < 5% (full load)
Power factor > 0.99 (full load)
Frequency 40-70 Hz
Electrical connection terminal block
Output voltage 200/208/220/230(default)/240Vac, single phase
Voltage harmonics ≤ 2% (linear load)
Voltage regulation ± 1% (static); ± 2% (typical)
Frequency 50 or 60 ± 0.05 Hz
Overload capacity 106-110% : 10 min; 111——125%: 5 min; 126——150%: 30 s; >150%: Instant
Electrical connection terminal block
Peak factor 3:1
Rated voltage 192 Vdc
Temperature 0 -- 40°C
Relative humidity 0 -- 95% (non-condensing)
Audible noise 54 dBA (1 m)
Size (WxDxH)
UPS: 440 x 671 x 89 mm
Battery cabinet: 440 x 638 x 89 mm
weight
UPS: 15.5 kg
Battery cabinet: 37 kg
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
