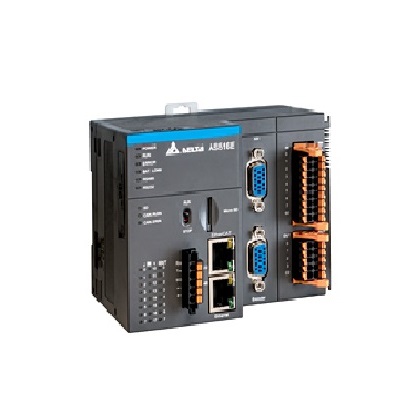

About: The AS228T-A uses Delta's own developed 32-bit SoC processor, greatly improving performance (40 k steps/ms), powerful positioning control, can simultaneously support the most multi-8 axis CANopen motion network / 6 axis 200 kHz pulse control, a rugged backplane-less architecture, With a quick installation mechanism design, patented buckle structure, can be "straight up/straight down" replacement module, easy installation.
Product parameter
Instruction processing speed
Basic command LD: 25ns
Apply the instruction MOV: 0.15us
Integer four arithmetic: 0.92us-1.02us
Floating-point number four arithmetic: 1.69-1.85us
Program capacity: 128k steps
Number of function cards: The CPU supports two function cards
** Large expansion module: a total of 32 sets (limit: analog module ** more than 16 sets/communication module more than 4 sets)
** Maximum IO points: 1,024 points (sum of input and output points)
Internal current consumption
Host: 150mA
Building expansion module: digital relay output <150 mA, the rest of the module 80 mA
Operating ambient temperature -20-60 ℃
Storage ambient temperature -40-80℃
Operating environment humidity 5 -- 95%, no condensation
Storage environment humidity 5 -- 95%, no condensation
Vibration resistance meets the standard IEC61131-2, 1EC60068-2-6(TESTFc), positive wave (Sinusoldal)5-8.4Hz3.5mm displacement, 8.4-150Hz1G mobility (ecceleration)
Shock resistance meets the ** standard specification EC61131-2IEC6008-2-27(TESTEa) Half-chord wave (Half-sine)15g peak (peak), 11 ms duration (duration)
No corrosive gases exist in the working environment
Installation position control box
Pollution Level 2
Protection class IP20
Operating altitude below 2,000 meters
