DTV series is designed for the electronic valve market, emphasizing the humanized point of view, easy to set, improve competitiveness, built-in Modbus, easier data collection.
Product introduction
Input power supply: AC 100-240V 50/60Hz
Operating voltage range: rated voltage 85% - 110%
Power consumption: less than 5VA
Display method:
Double row of seven LED display, can display four and two valve opening display.
Current temperature value: red: set temperature value and valve opening: green
Input sensor
Thermocouple: K,JT,E,N,R,S, B,L, U, TXK:
Platinum temperature resistance: Pt100, JPt100
Analog input: 0 -- 5V,0 -- 10V, 0 -- 20mA, 4-20mA,0 -- 50mA
Control method: PID, PID programmable, manual or ON/OFF
Control output type: Relay output: single pole double gate, the maximum load is AC 250 volts, 5 amps resistive load.
Display scale: Optional decimal point - place or no decimal point
Sampling frequency: Analog input: 0.15 s: Thermocouple or platinum resistance: 0.4 s
Shock resistance
10 -- 55Hz 10m/s² 3 axis direction 10 minutes
Impact resistance: ** 300m/s2 3 axis 6 directions 3 times each
Operating environment temperature: 0°C -- +50°C
Ambient temperature: -20°C -- +65°C
Operating height: less than 2,000 meters
Operating environment humidity: 35% to 80% RH (no condensation)
Control mode is completely designed for electronic valve characteristics
Has two sets of alarm output, with 17 alarm modes
With RS-485 interface, can carry out network on-line monitoring, to achieve the ability of multiple data collection

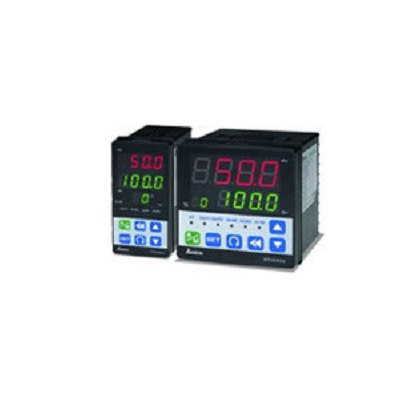

Two panel sizes available (4896, 9696)
Best application:
Kiln industry, control electronic valve special controller
