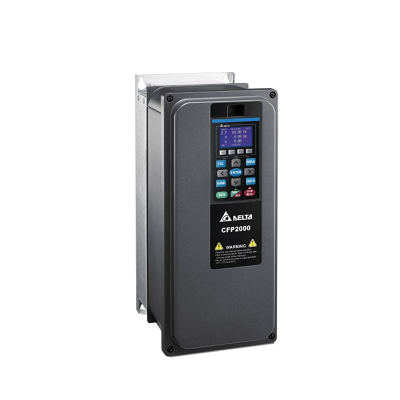

Description: VFD007FP2EA-41 Special inverter for fan and water pump, motor power 0.75kW, input power 230V/ three-phase, output current 5A, built-in PLC, support external power supply card, protection level IP41/NEMA1/UL Type 12.
Product details
Input power (V)230V 3-Phase
Output current (A)5
Control method IMVF; IMSVC (Space Vector Control) ; PMSVC ; PMFOC (Field Oriented Control) Sensorless
Built-in EMC filter Yes
Built-in DC reactance Yes
Built-in brake crystal No
Motor power (kW)0.75
Protection level IP41/NEMA1/UL Type 12
Version Wall Mount
Safe torque off Yes
Induction Motor types Induction Motor(IM); Interior Permanent Magnet Motor(IPM) ; Surface Permanent Magnet Motor(SPM) ; PMA-SynRM
Number input (points)10
Relay output (points)3
Analog input 0 -- 10V (points)1
Analog input 4 -- 20mA (points)2
Analog output 0 -- 10V (points)1
Analog output 4 -- 20mA (points)1
Pollution level 2
Humidity (%) 95
Load type Fan & Pump Application
Type of work mode Light Duty; Normal Duty
Built-in PLCYes
Support external power supply card Yes
Card in slot 1 Yes
Slot 2 card No
Slot 3 Digital IO Card; Relay Card ; Analog IO Card ; External Power Supply Card
** Small carrier frequency (kHz) 2
** Large carrier frequency (kHz) 15
** High output frequency (Hz)599
Cooling method Natural
Dimensions (W x H x D) (mm)161 x 366.4 x 199
Wall Mount
