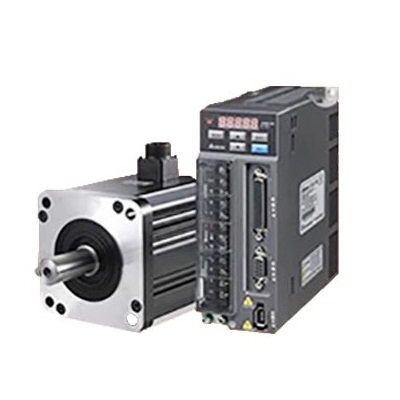

Introduction: Accept optical ruler and encoder signal support full closed loop control incremental rotary encoder 20-bit resolution, can be suitable for high-precision applications to provide high-speed communication network expansion module can design a variety of functions to meet the needs of customized products.
Features:
Capacity range :0.1kW -- 7.5kW
Input voltage: AC200V - 230V, using single-phase/three-phase input or three-phase input
Receiving optical ruler and encoder signals support fully closed loop control
Incremental rotary encoder with 20-bit resolution for high precision applications
Provides high-speed communication network
The expansion module can be designed with multiple functions to meet the needs of customized products
Built-in motion control (powerful internal position mode!)
Electronic CAM \ function can set the mechanical speed, optimize the moving path; ** Large 720 points can be planned (for food processors and sealers)
Built-in gantry synchronization function (CNC wire cutting & Electronics industry machine)
Scope of application:
Slow wire machine tool, EDM machine tool, testing machine, multi-axis synchronous application, precision machining machine tool, filling bottle filling equipment, feeding machine, woodworking machinery, wire cutting machine, packaging equipment, printing equipment, textile equipment
Realization of full closed loop control
The second encoder signal interface (cn5) is built in, which can connect the grating ruler signal to achieve full closed-loop control and achieve perfect positioning.
Reduce the impact of the clearance and flexibility of the mechanical transmission to ensure the positioning of the mechanical terminal.
Built-in electronic CAM \ function
CAM profile up to 720 points.
The CAM curve is automatically smoothed cubic.
ASDA-A2-SOFT software provides electronic CAM (E-CAM) editing capabilities.
Can be used on flying scissors or flying scissors control.
Highly flexible internal location programming mode
Provides internal location editing function, can plan the running path.
** Multiple 64 groups of paths can be planned for continuous multipath operation.
The position, speed, acceleration and deceleration time can be changed midway during the path running.
Each group of paths can be set to four operating modes: path jumping, parameter writing, speed control and position control.
A set of fixed paths is a return to the origin mode.
