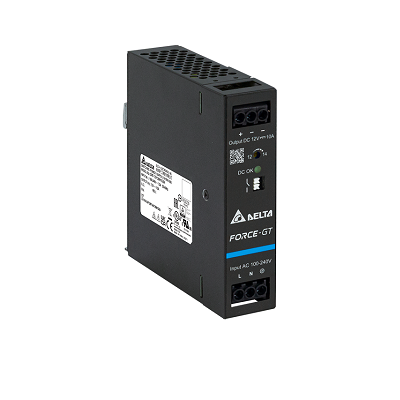

Delta DRF-12V120W1GBA guideway power supply for charging applications with built-in constant current circuit; Full load operating temperature up to 60°C-40°C cold start; Ultra-thin design; Built-in DC normal relay and LED indicator.
Product parameter
Output current: 10A
Output voltage: 12V
Output voltage adjustment range: 12-14 Vdc
Output power: 120W
Line voltage adjustment rate: ± 0.5% @ 115 Vac & 230 Vac
Load adjustment rate: ± 1.0%
Ripple voltage:
< 100 mVpp @ 0°C to +70°C
< 300 mVpp @ -30°C to 0°C
Startup time: 300 ms typ.@115 Vac & 230 Vac
Hold time: 35 ms typ.@115 Vac & 230 Vac (100% load)
Dynamic response: ± 10% @ 115 Vac & 230 Vac input, 10-100% load (Slew Rate: 2.5A /μS, 50% duty cycle @ 5 Hz & 10 kHz)
Capacitive load startup: 10,000 µF Max
Boost time: 30 ms typ.@115 Vac & 230 Vac
Rated input voltage: 100-240 Vac
Input voltage range: 90-264 Vac
Rated input frequency: 50-60 Hz
Input frequency range: 47-63Hz
Input current: 1.2 A typ.@115 Vac, 0.6 A typ.@230 Vac
Input power (standby mode) : 0.5W max @ 115Vac & 230Vac
100% load efficiency: 93.0% typ.@230 Vac
** Large influx current: 40 A typ.@230 Vac
Power factor: > 0.95@115Vac & > 0.92@230Vac
Leakage current: < 0.5 mA @ 240 Vac
Weight: 0.5 kg (1.10 lb)
Size:
123.6 x 30 x 116.8mm
4.87 "x 1.18" x 4.60"
