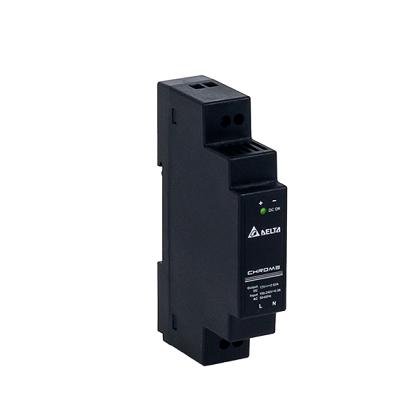

The DRC-12V10W1AZ can be cold started at -40°C for the best power boost performance and the SIL3 EN61508 functional safety rating. Specific CliQ models also have intelligent monitoring capabilities and are ATEX and Class I, Div 2 certified for use in high-risk Settings. The CliQ M Series also provides the best power supply option for offshore applications through ABS and DNV-GL safety standards.
Product characteristics
Class II, Double insulation (No grounding required)
Universal AC input voltage, up to 55°C full load
There is no power derating in the input voltage range
Efficiency up to 82.0% @ 115Vac & 230Vac
It is suitable for small cabinets
NEC Class 2 / Limited Power Supply (LPS) certification
Conforms to IEC/EN 61000-3-2, Class A standard for harmonic currents
IEC/EN/UL 60950-1, IEC/EN/UL 62368-1 and UL 508
Product parameter
Output current: 0.83A
Output voltage: 12V
Output power: 9.96W
Line voltage adjustment rate: < 0.5% (@90-264Vac input, 100% load)
load adjustment rate: < 1.0% (@90-264Vac input, 0-100% load)
Ripple voltage: < 100mVpp
Boot time: < 3,000ms @nominal input (100% load)
Hold time:
> 10ms @ 115Vac,
> 60ms @ 230Vac (100% load)
Dynamic response: ± 5% @ 90-264Vac input, 10-100% load
(Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 100Hz)
Capacitive load start: 3,000μF Max
Pressure boost time: < 70ms @nominal input (100% load)
Input voltage: 100-240Vac
Input voltage range: 90-264Vac
Rated input frequency: 50-60Hz
Input frequency range: 47-63Hz
Dc input voltage range: 125-375Vdc
Input current:
< 0.30A@ 115Vac,
< 0.20A@ 230Vac
100% load efficiency:
> 82.0% @ 115Vac,
> 80.5% @ 230Vac
** Large influx current:
< 15A @ 115Vac,
< 30A @ 230Vac
Leakage current: < 0.25mA @ 240Vac
** High power loss:
0% load: < 0.15W@115Vac & 230Vac
100% load: < 2.18W@115Vac, < 2.40W@230Vac
Base/case top cover: Plastic
Indicator light: Green LED (DC OK)
Cooling mode: Convection
Input: M4 x 2 Pins (Rated 300V/16A)
Output: M4 x 2 Pins (Rated 300V/16A)
Sound pressure level (SPL) : < 25dBA
Install Rail: Standard TS35 DIN Rail in accordance with EN 60715
Wire: Input/Output: AWG 24-12
Weight: 0.06 kg (0.13 lb)
Size:
91 x 18 x 55.6mm
3.58 "x 0.71" x 2.19"
Operating temperature: -25°C to +71°C
Storage temperature: -25°C to +85°C
power degradation: > 55°C de-rate power by 2.5% / °C
Condensing Humidity: 5 to 95% RH (Non-Condensing)
Operating height: 0 to 2,000 Meters (6,560 ft.)
Pollution level: 2
Overvoltage category: II
Protection level: IP20
