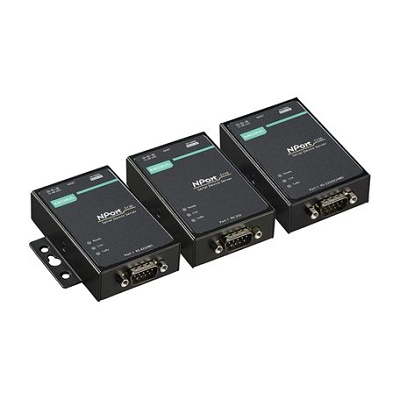

The NPort® 5100 Serial Device Networking server facilitates easy network access for serial devices. The compact design of this device networking server makes it ideal for connecting card readers and payment terminal devices to IP-based Ethernet Lans. The NPort 5100 Device Networking server allows your PC software to access serial devices directly over the network from anywhere.
Efficient and economical serial port networking solution
The use of serial device networking servers to connect traditional serial devices to the network has become quite popular, and users expect device networking servers to be cost-effective and have a wide range of practical functions. The NPort® 5100 series supports Microsoft and Linux operating systems and comes with a 5-year warranty, making it a better choice for serial networking solutions.
Adjustable terminal resistance and pull-up/pull-down resistance
In some harsh environments, terminal resistors may be required to eliminate the reflection of the serial signal. When using the terminal resistor, the pull-up/pull-down resistor must be set correctly to avoid damage to the electronic signal. Since no resistance value is compatible with all environments, the NPort® 5100 Device networking server is equipped with jumpers that allow users to adjust the terminal resistance and pull-up/pull-down resistance of the serial port.
Standard TCP/IP interface and multiple modes of operation
The NPort®5100 Device Networking Server supports TCP Server, TCP Client, UDP Server/Client, paired connection, or Ethernet modem modes to ensure API software compatibility with standard networks, such as Winsock or BSD sockets.
The Real COM/TTY driver supports existing software
The NPort®5100 Device Networking server provides a Real COM/TTY driver that enables existing software to communicate over a COM/TTY port. Simple installation and configuration allows your serial devices and PCS to communicate seamlessly over TCP/IP networks. Moxa's Real COM/TTY driver lets you keep your software and take full advantage of connected serial devices.
Easy troubleshooting
The NPort® 5100 Device networking server supports SNMP and monitors the status of individual devices over the network. Each device can be configured to automatically send a trap message to the SNMP manager when a user-defined error occurs. If the user does not use SNMP manager, you can also choose to send an email alarm. Users can use Moxa's Windows administration tool or web console to set the trigger conditions. For example, hot startup, cold startup, or password change triggers an alarm.
Characteristics and advantages
Compact design for easy installation
Real COM/TTY driver for Windows and Linux
Standard TCP/IP interface, supporting common TCP and UDP modes of operation
Easy to use Windows management tool, can configure multiple device networking server
Supports SNMP MIB-II network management protocol
Use Telnet, a Web browser, or a Windows management tool
RS-485 port pull-up/pull-down resistance is adjustable
