Mitsubishi 5U PLC and MCGS touch screen connection
Published:2023-02-16 16:19:46

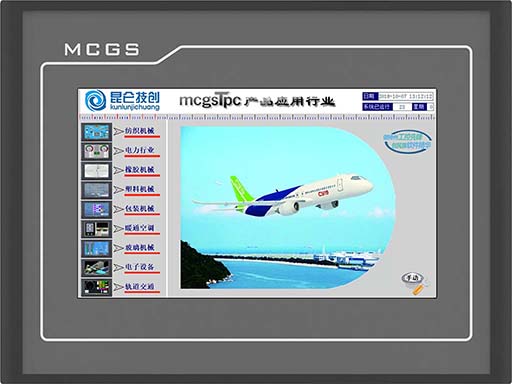

First of all, let's look at the interface Settings of Kunlun touch screen.
1. Click the device window to enter Add PLC
2. Add a TCP parent serial port and add a 5U device below
3. Double-click the parent TCP device to learn the Settings. Enter the IP address of the touch screen and select the local port number, which is usually 0. Then fill in the IP address of 5Uplc, which must be in the same network segment as the touch screen (you can search for the meaning of the same network segment if you do not know), fill in the port number specified on the side of the 5U touch screen, which must be the same as that on the side of the PLC, which is written 1051
Next, set the PLC side
1. Enter Ethernet port Settings and set the IP address of PLC
2. Click Object Device Connection Configuration Settings to perform detailed configuration. Select a SLMP device from the right general Ethernet device (select this device for both the touch screen connection) and fill in the port number 1051 (generally select more than 1000, and a different port number is required for communication with one device).
3. Remember to click OK after exiting, otherwise the parameters will not be saved
Finally, be sure to click "Apply", and then plug in the network cable, touch screen and PLC can communicate
-
