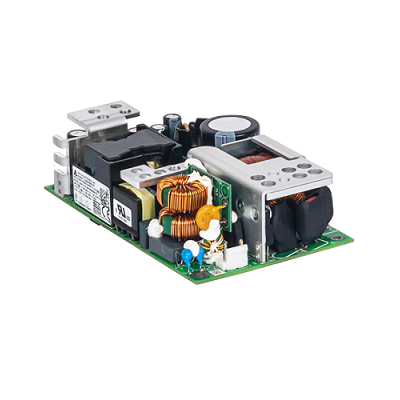

Open-shelf power supplies are available at a variety of rated output voltages and are available in a variety of configuration options. Products and IEC60950-1/62368-1 of the main safety standards. ** The new PJB series has built in high power boost performance, which can maintain a 200% power boost for up to 10 seconds. Product design is under the best industrial footprint standards.
Product characteristics
Major safety certifications, including IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16
AC Input Voltage Range Soon Available Class I Ring Class II (Dual insulation
300W fan cooling, natural convection cooling power up to 240W
The efficiency can be as high as 94.0%
Built-in main PFC, remote control On/Off, remote sensing signal, Power Good signal and SB (6W) ring Optional 5VSB (6W)
No-load input power consumption < 0.5W, < 0.75mA low leakage current
-40°C extremely low temperature stimulating
Product parameter
Output current: 8.3A
Output voltage: 36V
Output voltage adjustment range: 34.2-37.8Vdc
Output power: 300W
Line voltage adjustment rate: V1 and VSB: < 0.5% (@90-264Vac input, 0-100% load)
load adjustment rate: V1 and VSB: < 1.0% (@90-264Vac input, 0-100% load)
Input voltage: 100-240Vac
Input voltage range: 90-264Vac
Rated input frequency: 50-60Hz
Input frequency range: 47-63Hz
