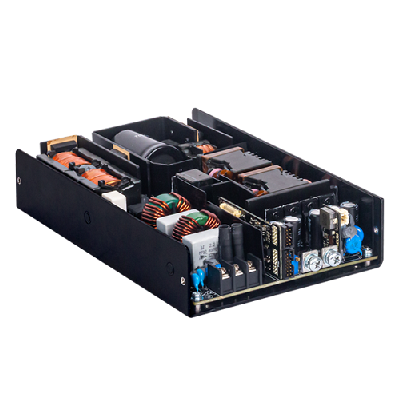

Description: Open-shelf power supplies are available in a variety of rated output voltages and are available in a variety of configuration options. Products and IEC60950-1/62368-1 of the main safety standards. ** The new PJB series has built in high power boost performance, which can maintain a 200% power boost for up to 10 seconds. Product design is under the best industrial footprint standards.
Product characteristics
C Natural convection cooling
5" x 8" x 1.57" size optimized for up to 600 Watt
90V to 264V full power operating temperature up to 50°C
The mean time between failures (MTBF) is up to 500,000 hours
2MOPP is suitable for the use of medical system equipment accessible to BF patients
5V/1A Standby power supply
12V/0.6A supplies DC fan power
EMI Class B standard for Conduction and radiation
Anti-interference degree to IEC60601-1-2 4th Edition standard
PMBus Ver 1.3 is supported
Product parameter
Output current: 25A
Output voltage: 24V
Output power: 600W
Line voltage adjustment rate: 1%
Load adjustment rate: 2%
Input voltage: 100-240Vac
Input voltage range: 85-264 VAC
Rated input frequency: 50-60Hz
Input frequency range: 47-63Hz
Input current: 7.5A
Weight: 1.30 kg (2.87 lb)
Size:
203.2 x 127 x 40 mm
8.00 "x 5.00" x 1.57"
Vibration test (in operation) : 5-500Hz, 2Grms, 15 minutes for each three axis
Operating temperature: Absolute Maximum/Minimum Rating -20°C to +70°C
Storage temperature: -40°C to +85°C
