Introduction: The output frequency 0.1-600Hz adopts the servo PDFF control in 0 speed, high and low speed PI gain and bandwidth setting and speed closed-loop control mode, and the torque can reach 150% overload at zero speed: 150% up to one minute, 200% up to two seconds

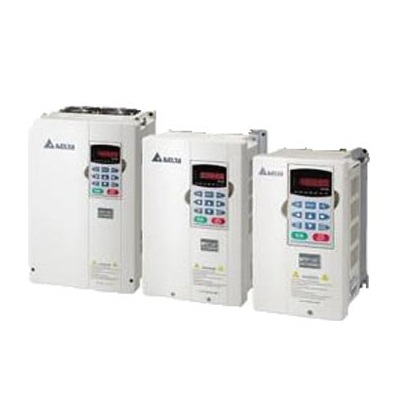

DELTA Inverter VFD-VE High performance magnetic beam vector control type:
▲ Output frequency 0.1-600Hz
▲ Robust PDFF control with servo
▲ Set PI gain and bandwidth at 0 speed, high and low speed
▲ With the speed closed-loop control mode, the torque can be maintained at zero speed up to 150%
Over load: 150% up to one minute, 200% up to two seconds
▲ Origin return, pulse following, 16 point to point position control
▲ Position/speed/torque control mode
▲ Super tension control, rewinding function
▲ 32-bit CPU, high-speed version ** can output 3333.4Hz
▲ Support dual RS-485, fieldbus and monitoring software
▲ Built-in spindle positioning tool change
▲ Can drive high-speed motorized spindle
▲ With spindle positioning, rigid tapping ability
Featured functions:
●V/F,FOC+PG,TORQUE+PG, position control
●DOC+PG closed circuit control, speed control up to 1:1000
● Built-in PID control
● Can do motor parameters and load inertia estimation
●4 sets of independent S-curves and acceleration/deceleration times
● Mechanical brake control function
● Instantaneous power failure deceleration function
● Motor Y-switching function
●10 groups of convenient communication blocks
●I/O serial positioning control
● Monitoring card and monitoring application software
● With light load automatic energy saving function
● Motor temperature feedback protection function
●0 speed, high and low speed PI gain and bandwidth setting
● Origin return, pulse following, 16 point to point position control
Model range:
Three-phase 230 V Series: 0.75 -- 37 kW (1 -- 50 hp)
Three-phase 460 V series: 0.75 -- 75 kW (1 -- 100 hp)
