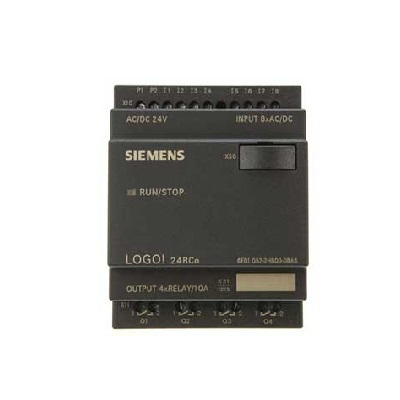

Description: Siemens Siemens Logic module, relay output, 8 x input, 4 x output, 24 V AC/DC, 72 x 90 x 55 mm
Model feature introduction
LOGO! 6- Logical module without display
LOGO! Pure has LOGO! All functions of standard devices except function keys or displays
Suitable for no need to access LOGO! The app uses LOGO! SoftComfort Software SoftComfortV6 software or insert pre-programmed memory modules with eight digital inputs and four digital outputs can be expanded using password security Size: H 90mmx W 72mmx D 55mm Operating Temperature range: 0 to 55°C
SiemensLOGO! 6 series
SiemensLOGO! The 6 series gives you additional features designed to make LOGO! Occupy the forefront of this technology. New generation LOGO! The 0BA6 feature also has the decisive advantage of enabling the possibility of connecting an additional display without a communication module. It is very easy to project and display information related to the operator. The text display has been precisely optimized to meet the needs of the logic module, and it can also be planned as an internal display with the same functional block. In addition, the performance of the base module has now been enhanced by more than 50 percent to 200 functional blocks. As a result, more and more applications are being replaced with more cost-effective logos! Configuration, cost saving potential has also been improved over the previous LOGO! Greatly improved devices include:
LOGO! TD devices connect directly to all 0BA6 base modules. Display with adjustable ** backlight (onboard and/or TD). Up to 50 blocks of message text (onboard and/or TD). New PWM integration features. Simple bar chart function. Text marker function. 4 analog inputs (0-10V)- Replace 2. 4(5kHz) fast counter input - replaces 2(2kHz). Analog output is 0mA to 20mA or 4mA to 20mA. Ten different onboard languages (GE, EN, FR, IT, ES, CHN, JAP, TR, RUS, and NL). SiemensLOGO! 6 will no longer be produced. We suggest that LOGO! 8 series for your new design. Consult the Technical Reference section for more information.
Model parameter introduction
Attribute value
Series LOGO! 6
Power supply voltage 24V (AC/DC)
Output type relay
Output number 4
Input type digit
Number of inputs 8
Mounting type DIN rail
Including display no
Width 90mm
Length 72mm
Depth 55mm
Terminal type screw
The dimensions are 72x90x55mm
Used in LOGO series
Programming interface computer
Module Type Logical control module
** High operating temperature +55°C
Output current 10A
** Low operating temperature 0°C
