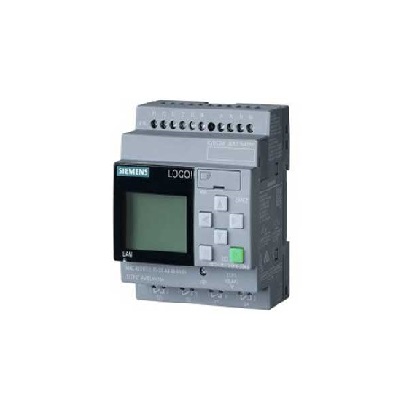

6ED1052-1HB08-0BA0 Description: Siemens Siemens logic module, Ethernet communication port type, 1 port, relay output, 8 x input, 4 x output
Model feature introduction
LOGO! 8.2- Logical Module
LOGO! 8 is the latest generation of intelligent logic modules for Siemens, providing refined upgrades to the previous generation. Improvements include simplified operations, a new optical indicator display, and full communication capabilities over Ethernet across a full family of logic modules.
LOGO! Another new advantage of 8 is that all logic modules come with an integrated Web server for LOGO use! Conduct monitoring and control through WLAN and Internet; Easy to configure, no HTML programming knowledge required.
Characteristics and advantages
Integrated Web server
The refined screen provides a new look and feel for the logic module
The display has six lines of 16 characters each, which means that more specific information can be used through text
With optional white, orange, and red backlighting, the alarm's optical focus needs are met
Logic modules are compatible with all voltages
Due to cross LOGO! The 8 series provides integrated Ethernet connectivity so that SIMATICS7 communication is possible
LOGO can be used! Text message communication CMR module for alert and control via smart phone. This module provides status updates, value adjustments, and time zone synchronization
LOGO! Web editor tools
LOGO! The Web editor is working with LOGO! New tool to use together with Base module (BM) and LOGO! Soft and comfortable. This tool helps you create user-defined web pages in the editor pane, as well as through LOGO! The Web server accesses the entire project dock module. Use LOGO! You can also use the Web editor to easily integrate different components, including some variables.
LOGO! Access the tool V2.0.0
Use LOGO! Access the V2.0.0 tool, you can set the data synchronization period, display historical data, and start or stop LOGO! Data synchronization base module. Logo24RCE, Logic module, display PU/ Input/Output: 24V AC /24V DC/Relay, 8DI/4DO, Storage 400 PCS, Expandable, Ethernet, Built-in Web Server, data log, User-Defined Web Pages, Standard micro SD card for LogoSoftComfortV8, Previous project use situation SiemensLOGO! 8 series
Model parameter introduction
Attribute value
Series LOGO! 8.2
The supply voltage is 24V DC
Output type relay
Output number 4
Input type digit
Number of inputs 8
Mounting type DIN rail
Communication port Type Ethernet
Including the display is
The width is 71.5mm
Depth 60mm
Length 90mm
Used in LOGO series
The dimensions are 90x71.5x60mm
Terminal type screw
Number of communication ports 1
Network type Ethernet
Module Type Logical control module
Output current 10A
** Low operating temperature -20°C
** High operating temperature +55°C
Conform to the standard of CE, CSAApproval EN55011 EN60529, FMApproval, IEC61131, ULApproval, VDE0631
In-app Web server, data logging, user-defined web pages
