Technical data

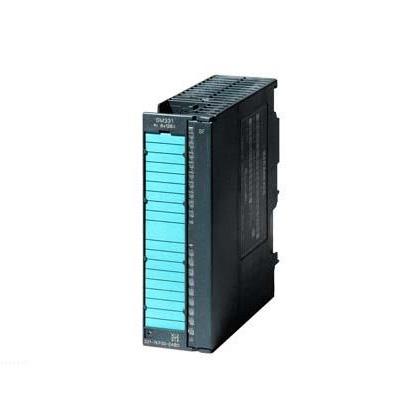

SIMATIC S7-300, analog input SM 331, potential isolation 8 analog input, resolution 13 bit U/I/ resistor /Pt100, NI100, NI1000, LG-NI1000, PTC/KTY, 66ms conversion time; 40 stitches per piece
Input current
From the backplane bus DC 5 V, Max 90 mA
Power loss
Power loss, typical value 0.4 W
Analog input
The number of analog inputs is 8
● 8 when measuring resistance
Voltage input Allowed input voltage (damage limit), Max. 30 V; 12 V continuous voltage, Max 1 s 30 V
Current input Allowed input current (damage limit), Max. 40 mA
Input range
● Voltage is
● Current is
● Thermocouple No
● Resistance thermometer Yes
● Resistance is
Input range (rating), voltage
● 0 to +10 V is
- Input resistance (0 to 10 V) 100 kΩ
● 1 V to 5 V Yes
- Input resistance (1 V to 5 V) 100 kΩ
● 1 V to 10 V No
● -1 V to +1 V yes
- Input resistance (-1 V to +1 V) 100 kΩ
● -10 V to +10 V Yes
- Input resistance (-10 V to +10 V) 100 kΩ
● -2.5V to + 2.5V No
● -250 mV to +250 mV No
● -5 V to +5 V Yes
- Input resistance (-5 V to +5 V) 100 kΩ
● -50 mV to +50 mV Yes
- Input resistance (-50 mV to +50 mV) 100 kΩ
● -500 mV to +500 mV Yes
- Input resistance (-500 mV to +500 mV) 100 kΩ
● -80 mV to +80 mV No
Input range (rating), current
● 0 to 20 mA Yes
- Input resistance (0 to 20 mA) 100 Ω
● -10 mA to +10 mA No
● -20 mA to +20 mA Yes
- Input resistance (-20 mA to +20 mA) 100 Ω
● -3.2 mA to +3.2 mA No
● 4 mA to 20 mA Yes
- Input resistance (4 mA to 20 mA) 100 Ω
Input range (rating), thermocouple
● Type B No
● Type C No
● Type E No
● Type J No
● Type K No
● Type L No
● Type N No
● Type R No
● Type S No
● Type T No
● Type U No
● The type TXK/TXK(L) matches GOST. No
Input range (rating), resistance thermometer
● Cu 10 No
● Ni 100 is; Standard/climate
- Input resistance (Ni 100) 100 MΩ
● Ni 1000 is yes
- Input resistance (Ni 1000) 100 MΩ
● LG-Ni 1000 Yes; Standard/climate
- Input resistance (LG-Ni 1000) 100 MΩ
● Ni 120 No
● Ni 200 No
● Ni 500 No
● Pt 100 Yes; Standard/climate
- Input resistance (Pt 100) 100 MΩ
● Pt 1000 No
● Pt 200 No
● Pt 500 No
Input range (rating), resistance
● 0 to 150 ohms No
● 0 to 300 ohms no
● 0 to 600 ohms yes
- Input resistance (0 to 600 ohm) 100 MΩ
● 0 to 6000 ohms is
- Input resistance (0 to 6000 ohms) 100 MΩ
Thermocouple (TC)
Temperature compensation
- Parameterized no
- Internal temperature compensation No
- External temperature compensation using a compensation box No
Characteristic linearization
● Parameterizable yes
- No for thermocouple
-- For resistance thermometers; Pt100 standard/climate; Ni100 standard/climate; Ni1000 standard/climate; LG-Ni1000 Standard/climate
Conductor length
● Shielding, maximum 200 m; The maximum value is 50 m at 50 mV
Input analog value composition
Integration and conversion time/resolution per channel
● Resolution (bits including symbols) with overmodulation, up to 13 bits
● Parameterizable integration time is; 60 / 50 ms
● Basic conversion time (ms) 66/55 ms
● For interference frequency f1 (unit Hz), interference voltage suppression 50/60 Hz
sensor
Signal sensor connection
● For voltage measurement is
● For the current measurement as a two-wire system transmitter is; Attached external power supply
● For the current measurement as a four-wire system transmitter
● For the use of two wire interface resistance measurement is
● For the use of three wire system interface resistance measurement is
● For the use of four-wire interface resistance measurement is
Error/accuracy
Operating error limits throughout the temperature range
● Voltage, related to the input range, (+/-) 0.6%; ±0.6% (±5V, 10V, 1-5V, 0-10V; ±0.5% (±50mV, 500mV, 1V
● Current, related to the input range, (+/-) 0.5%; ±20 mA, 0 to 20 mA, 4 to 20 mA
● Resistance, related to the input range, (+/-) 0.5%; 0 to 6 thousand ohms, 0 to 600 thousand ohms
● Thermal resistance, input range dependent, (+/-) 1 K (Pt100, Ni100, climate; Ni1000, LG-Ni1000, standard; Ni1000, LG-Ni1000, Climate); 1.2K (Pt100, Ni100, standard)
Basic error limit (operating error limit at 25 °C)
● Voltage, related to the input range, (+/-) 0.4%; 0.4 % (±5 V, 10 V, 1 to 5 V, 0 to 10 V); 0.3% (±50 mV, 500 mV, 1 V)
● Current, related to input range, (+/-) 0.3 %; ±20 mA, 0 to 20 mA, 4 to 20 mA
● Resistance, related to the input range, (+/-) 0.3 %; 0 to 6 thousand ohms, 0 to 600 thousand ohms
● Thermal resistance, input range dependent, (+/-) 1 Kelvin (Pt100, Ni100, standard); 0.8 Kelvin (Pt100, Ni100, climate; Ni1000, LG-Ni1000, standard; Ni1000, LG-Ni1000, Climate)
Alarm/diagnosis/status information
Diagnostic function No
alarm
● Check whether the alarm is generated
● Limit value alarm No
diagnosis
● Diagnostic information can be read or not
Diagnostic display LED
● Cumulative failure SF (red) No
Potential isolation
Simulated input potential isolation
● Between channels no
● Between the channel and the backplane bus
insulation
Insulation test, using DC 500 V
Connect technology/title
Required front plug 40 pins
dimension
Width 40mm
Height 125 mm
Depth 117 mm
weight
Weight, about 250 g
