Technical data

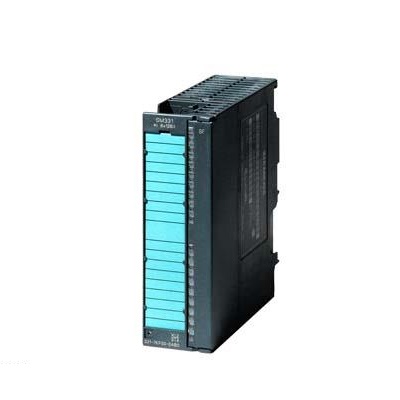

SIMATIC S7-300, Analog input SM 331, potential isolation, 8 analog input, aufl. 14Bit, 0.052ms/ channel current, voltage measuring instrument alarm, diagnosis, 1 20 pins, suitable for beat synchronous operation improved bus cycle time, for clock synchronous operation
Supply voltage
Load voltage L+
● Rating (DC) 24 V
● Reverse polarity protection is
Input current
Voltage from load L+ (no load), Max. 50 mA
From the backplane bus DC 5 V, Max 100 mA
Power loss
Power loss, typical value 1.5 W
Analog input
The number of analog inputs is 8
Voltage input Allowed input voltage (damage limit), Max. 20 V; 20 V DC continuous voltage, maximum 1 s DC 75V (duty cycle 1:20)
Current input Allowed input current (damage limit), Max. 40 mA
Input range
● Voltage is
● Current is
● Thermocouple No
● Resistance thermometer No
● Resistance No
Input range (rating), voltage
● 0 to +10 V No
● 1 V to 5 V Yes
- Input resistance (1 V to 5 V) 100 kΩ
● -1 V to +1 V yes
- Input resistance (-1 V to +1 V) 10 MΩ
● -10 V to +10 V Yes
- Input resistance (-10 V to +10 V) 100 kΩ
● -5 V to +5 V Yes
- Input resistance (-5 V to +5 V) 100 kΩ
● -500 mV to +500 mV Yes
● -80 mV to +80 mV Yes
Input range (rating), current
● 0 to 20 mA Yes
- Input resistance (0 to 20 mA) 50 Ω
● -20 mA to +20 mA Yes
- Input resistance (-20 mA to +20 mA) 50 Ω
● 4 mA to 20 mA Yes
- Input resistance (4 mA to 20 mA) 50 Ω
Conductor length
● Shielding, maximum 200 m
Input analog value composition
Integration and conversion time/resolution per channel
● Resolution (bits including symbols) with overmodulation, up to 14 bits; Unipolar: 14 bits; Bipolar: 13 bit + symbol
● Parameterizable integration time is
● Basic conversion time (ms) 52 µs per channel
● For interference frequency f1 (unit Hz), interference voltage suppression none /400/60/50 Hz
sensor
Signal sensor connection
● For the current measurement as a two-wire system transmitter
● For the current measurement as a four-wire system transmitter
Error/accuracy
Operating error limits throughout the temperature range
● Voltage, depending on the input range, (+/-) 0.4 %
● Current, related to the input range, (+/-) 0.3 %
Basic error limit (operating error limit at 25 °C)
● Voltage, depending on the input range, (+/-) 0.25%
● Current, related to input range, (+/-) 0.2 %
Alarm/diagnosis/status information
The diagnostic function is
alarm
● Diagnostic alarm yes; parameterizable
● Limit value alarm is; Parameterizable, channels 0 and 2
diagnosis
● Diagnostic information can be read Yes
Diagnostic display LED
● Cumulative failure SF (red) is
Potential isolation
Simulated input potential isolation
● Between channels no
● Between the channel and the backplane bus
● Between the channel and the supply voltage of the electronic component
insulation
Insulation test, using DC 500 V
Connect technology/title
Required front plug 20 pins
dimension
Width 40mm
Height 125 mm
Depth 117 mm
weight
Weight, about 230 g
