Technical data

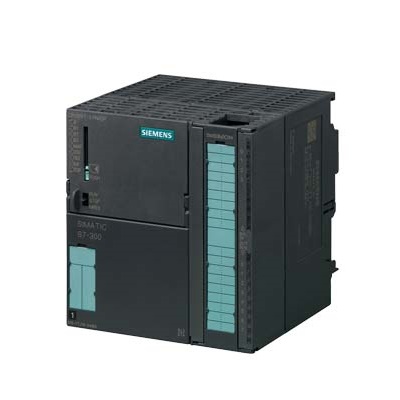

SIMATIC S7-300, CPU 315T-3 PN/DP, CPU for SPS and process tasks, 384 KB working memory, 1 MPI/DP 12 Mbit /s interface, 2 DP ports (drivers), 3 Ethernet PROFINET ports with dual port switch, integrated process I/O, front connector (1x 40 poles) and micro memory card minimum 8 MB 3 pieces
General information
Hardware function status 01
Firmware version CPU: V3.2; Integration technology V4.1.5
Product function
● Clock synchronization mode is; Through the PROFIBUS DP interface or PROFINET interface
packaged
● Engineering system STEP 7 V5.5 SP2 and option package S7-Technology V4.2 SP3 or later
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 19.2 V
The upper limit (DC) is 28.8V
External safety device of power conductor (recommended) minimum 2 A
Load voltage L+
● Rating (DC) 24 V
● Reverse polarity protection is
Digital output terminal
-- Rating (DC) 24 V; (2L+)
- Reverse polarity protection No; (2L+)
Input current
Consumption current (rated) 1 050 mA
Consumption current (no load), typical value 230 mA
On current, typical value 6.5 A
I squared t 1 A squared times s
Power loss
Power loss, typical value 7.5W
memory
Working memory
● Integrated 384 kbyte
● Expandable No
Loading storage
● Plug-in type (MMC) Yes
● Pluggable (MMC), Max. 8 Mbyte
● Data management on MMC (after last programming), minimum 10 a
