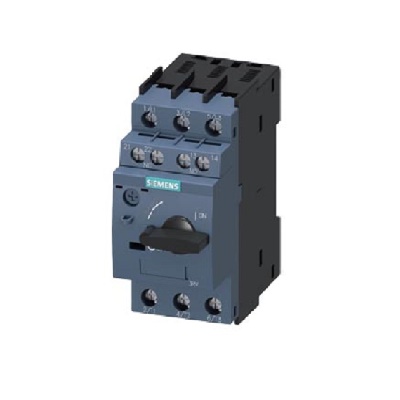

Circuit breaker, Structural dimension S3 for device protection Phase-free protection A Trip device 36-50 A N Trip device 650 A bolt-on terminals are connected with standard on-off capabilities
Structural size of circuit breaker S3
The contactor structure size can be combined with S3 according to the special situation of the company
Product expansion auxiliary switch Yes
Loss power [W] current when measuring value
● 27 W in hot operation when AC
● 9 W per electrode in hot operation at AC
Insulation voltage contamination degree 3 AC measured value 1 000 V
Impulse voltage resistance measurement value 8 kV
Installation height The height exceeds the maximum level by 2 000 m
Ambient temperature
● During operation -20... +60 °C
● Storage period -50... +80 °C
● Transit period -50... +80 °C
Relative air humidity during operation 10... 95%
Main circuit
The poles are used for main circuit 3
Configurable current action value Current-controlled overload trip of 36... 50 A
Operating voltage
● Measured value 20... 690 V
● The maximum measured value at AC-3 is 690 V
● The maximum measured value of AC-3e is 690 V
Operating frequency measurement value 50... 60 Hz
Working current measurement value 50 A
Working current
● Measured value 50 A at 400 V AC-3
● AC-3e at 400 V measured value 50 A
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
