Technical data

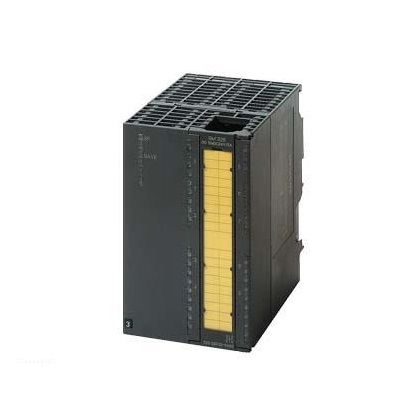

SIMATIC S7, digital input SM 326, F-DI 24xDC 24V, fail-safe digital input for SIMATIC S7 F system with diagnosis alarm, To 4 types of thread (EN 954-1)/ SIL3(IEC61508)/PLE (ISO13849), 1 count of 40 stitches
Supply voltage
Rating (DC) 24 V
Reverse polarity protection is
Input current
Voltage from load L+ (no load), maximum 450 mA
From the backplane bus DC 5 V, Max 100 mA
Sensor power supply
The number of output terminals is 4; Potential separation
Output current
● Rating 400 mA
Power loss
Power loss, typical value 10 W
Digital input
Number of input terminals 24
The number of inputs that can be controlled simultaneously
All mounting positions
- The maximum value is 40 ° C and the maximum value is 24 ° C
-- Up to 60 ℃, maximum 24; (24 V hour) or 18 (28.8 V hour)
Input voltage
● Input voltage type DC
● Rating (DC) 24 V
● For signal "0" -30 to +5 V
● For signal "1" +11 to +30V
Input current
● For signal "0", maximum (allowed closed circuit current) 2 mA
● For signal "1", typical value 10 mA
Input delay (when input voltage is rated)
For standard input
- When the value ranges from 0 to 1, the maximum value is 3.4 ms
- When the value ranges from 1 to 0, the maximum value is 3.4 ms
Conductor length
● Shielding, maximum 200 m
● Unshielded, maximum 100 m
sensor
Connectable sensor
● Double wire sensor is; In short circuit test off
- The maximum allowable closed circuit current (for a dual-wire sensor) is 2 mA
Alarm/diagnosis/status information
The diagnostic function is
alarm
● Diagnostic alarm Yes
diagnosis
● Diagnostic information can be read Yes
Diagnostic display LED
● Fail-safe mode is
● Cumulative failure SF (red) is
Potential isolation
Digital input potential isolation
● Between the channels yes
● Between the channels, group the number of points 12
● Between the channel and the backplane bus
insulation
Insulation test, using 500 V DC/350 V AC
Standards, licenses, certificates
The maximum level of safety that can be achieved in safe operation
● Conforms to DIN VDE 0801 AK 6
● Comply with EN 954 Class 4 line
● The performance rating conforms to ISO 13849-1 e
● SIL in accordance with IEC 61508 SIL 3
Connect technology/title
Required front plug 40 pins
dimension
Width 80 mm
Height 125 mm
Depth 120 mm
weight
It weighs about 442 grams
