Technical data

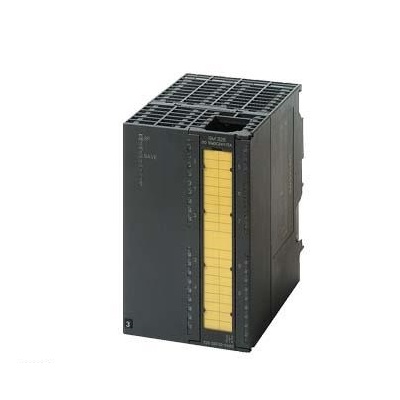

*** Spare parts *** SIMATIC S7, digital input SM 326,8 digital input; 24V DC, NAMUR, fail-safe NAMUR input for SIMATIC S7F system, to Class 4 wire (EN 954-1)/ SIL3(IEC61508)/PLE (ISO13849), 1 40 pin
Supply voltage
Rating (DC) 24 V
Reverse polarity protection is
Input current
Voltage from load L+ (no load), maximum 160 mA
From the backplane bus DC 5 V, Max 90 mA
Sensor power supply
The number of output terminals is 8
Output voltage DC 8.2V
Power loss
Power loss, typical value 4.5 W
Digital input
Number of digital input terminal 8; 8 (single channel); 4 (Dual channel)
The number of inputs that can be controlled simultaneously
All mounting positions
-- Up to 40 ℃, maximum 8; Vertical mounting
-- Up to 60 ℃, maximum 8; Horizontal installation
Input voltage
● Input voltage type DC
● Rating (DC) according to DIN 19234 or NAMUR
Input current
● For signal "0", maximum (allowable closed circuit current) 0.35 to 1.2mA
● For signal "1", typical values 2.1 to 7 mA
Input delay (when input voltage is rated)
For the NAMUR input side
- When the value ranges from 0 to 1, the maximum value is 1.2 to 3 ms
- When the value ranges from 1 to 0, the maximum value is 1.2 to 3 ms
Conductor length
● Shielding, maximum 200 m
● Unshielded, maximum 100 m
Alarm/diagnosis/status information
alarm
● Diagnostic alarm Yes
diagnosis
● Diagnostic information can be read Yes
Diagnostic display LED
● Fail-safe mode is
● Cumulative failure SF (red) is
Explosion-proof parameter
Explosion-proof components are
Maximum number of IIC gas terminals
● Uo (no-load voltage), maximum 10 V
● Io (short circuit current), maximum 13.9mA
● Po (output power), maximum 33.1mW
● Co (allowable external capacitance), Max. 3µF
● Lo (allowed external inductance), Max. 80 mH
● Um (voltage on non-native terminals), Max. 60 V DC/30 V AC
Potential isolation
Digital input potential isolation
● Between the channels yes
● Between the channel and the backplane bus
● Between the channel and the supply voltage of the electronic component
insulation
Insulation test, using DC 500 V
Standards, licenses, certificates
The maximum level of safety that can be achieved in safe operation
● Compliant with DIN VDE 0801 AK 4 (Single channel), AK 5 & 6 (Dual channel)
● Comply with EN 954 4
● The performance rating conforms to ISO 13849-1 e
● SIL 2 (Single channel), SIL 3 (Double channel) in accordance with IEC 61508
Use in explosion-proof area
● Explosion Proof Certificate 99 ATEX 2671 X
Environmental requirements
Operating ambient temperature
● Maximum 60 °C
Connect technology/title
Required front plug 40 pins
dimension
Width 80 mm
Height 125 mm
Depth 120 mm
weight
It weighs about 482 grams
