Technical data

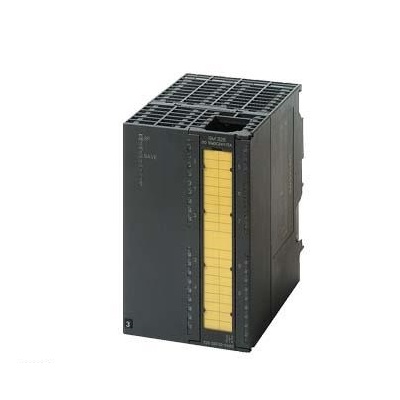

*** Spare parts *** SIMATIC S7, digital output SM 326,10 DA; 24V DC, 2A, fail-safe digital output for SIMATIC S7F system with diagnostic alarm, 1 40 pins
Supply voltage
Rating (DC) 24 V; 1L+
Reverse polarity protection is
Load voltage L+
● Rating (DC) 24 V; 2L plus, 3L plus
● Reverse polarity protection No
Input current
Voltage from supply 1L+, maximum 70 mA
Voltage from load 2L+ (no load), Max 100 mA
Voltage from load 3L+ (no load), Max 100 mA
From the backplane bus DC 5 V, Max 100 mA
Power loss
Power loss, typical value 12 W
Digital output
Number of output terminals 10
Short circuit protection is
The inductive shut-off voltage is limited to L+ (-53 V) without a series diode and L+ (-33 V) with a series diode
Output on-off capability
● The maximum value of lighting load is 5 W
Output voltage
● For signal "1", minimum L+ (-1 V) without series diode, L+ (-1.8V) with series diode
Output current
● For signal "1" rating 2 A
● For signal "1" allowable range 0 to 40 ℃, minimum value 7 mA
● For the signal "1" allowable range 0 to 40 ℃, the maximum 2 A; 2 A for horizontal installation and 1 A for vertical installation
● For signal "1" allowable range of 40 to 60 ℃, minimum value 7 mA
● For the signal "1" allowable range of 40 to 60 ℃, the maximum 1 A; When mounted horizontally
● For the residual current of signal "0", the maximum is 0.5mA
Switching frequency
● The maximum value of resistance under load is 10 Hz
● The maximum value of inductor load is 2 Hz
● The maximum value of lighting load is 10 Hz
Total current at output (per group)
Horizontal mounting position
-- Up to 40 ℃, maximum 7.5 A; No series diode, 5 A with series diode
-- Up to 60 ℃, maximum 5 A; No series diode, 4 A with series diode
Vertical mounting position
-- Up to 40 ℃, maximum 5 A; No series diode, 4 A with series diode
Conductor length
● Shielding, maximum 1 000 m; At SIL 3, 200 m, AK 6,4 class lines
● Unshielded, maximum 600 m
Alarm/diagnosis/status information
alarm
● Diagnostic alarm Yes
diagnosis
● Diagnostic information can be read Yes
Diagnostic display LED
● Fail-safe mode is
● Cumulative failure SF (red) is
Potential isolation
Digital output potential isolation
● Between the channels yes
● Between channels, group the number of points 5
● Between the channel and the backplane bus
● Between the channel and the supply voltage of the electronic component
insulation
Insulation test, using 500 V DC/350 V AC
Standards, licenses, certificates
The maximum level of safety that can be achieved in safe operation
● Conforms to DIN VDE 0801 AK 5 and 6
● Comply with EN 954 Class 4 line
● The performance rating conforms to ISO 13849-1 e
● SIL in accordance with IEC 61508 SIL 3
Connect technology/title
Required front plug 40 pins
dimension
Width 80 mm
Height 125 mm
Depth 120 mm
weight
It weighs about 465 grams
