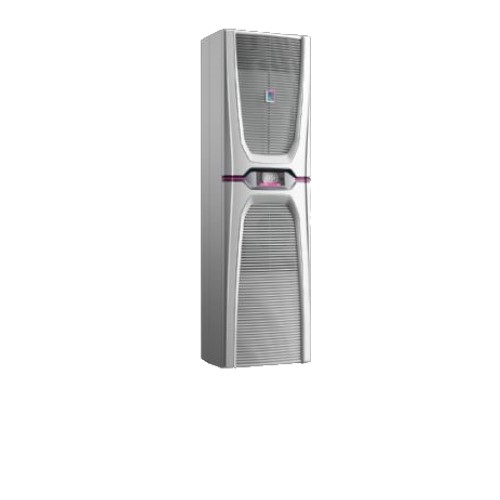

Blue e+ Wall-mounted cooling equipment for chemical industry 1.6-5.8kW
Product Code :SK 3188.945
High energy efficiency Blue e+ wall-mounted cooling equipment for the chemical industry with a cooling capacity ranging from 1600 W to 5800 W. The parts are specially coated to provide optimal protection in chemical environments, especially in applications where sulphuric acid aerosols may be present in the air.
Type: Chemical
Your benefits:
The speed control unit and heat pipe technology save an average of 75% of electricity consumption.
It can be used worldwide due to its unique multi-voltage capability (no rewiring required) and wide operating limit range
Extend the service life of all components of the control box and cooling unit through curing cooling
Intuitive operation via touch screen and intelligent interface
Scope of use:
Applications where the air may contain sulfuric acid in aerosol form (e.g., paper industry, food industry, chemical industry, electroplating, offshore industry)
Material: Steel plate
Surface:
Sheet metal and electronic components are coated with transparent paint
Cooling circuit with 2-K-PUR paint coating
Color: RAL 7035
Scope of Supply:
Condenser with hydrophobic RiNano coating
Integrated electric condensate evaporator
Includes mounting fasteners
wired
Options:
To facilitate remote monitoring and networking of the cooling unit and Blue e+ cooling unit, use the IoT communication module with product number 3124.300. Remote monitoring of device data, status, and system messages improves machine availability and process security.
Total cooling power, according to DIN EN 14511:
Cooling power L35 L35/50 Hz: 4.2kW
Cooling power L35 L35/60 Hz: 4.2kW
Cooling power L35 L50/50 Hz: 3.02kW
Cooling power L35 L50/60 Hz: 3.02kW
Rated operating voltage: 380 V-480 V, 3~, 50 Hz/60 Hz
Instructions:
Please follow the assembly instructions.
Once the software is downloaded, the user enters into an agreement with Vito to use the software free of charge under the terms of the license.
Note on order number:
Tolerances: 380 V - 10% (342 V) and 480 V + 5% (509 V)
Unable to install all
Rated power: 1.3kW
Air flow (free air supply) :
External loop: 2,300 m³/h
Internal loop: 2,300 m³/h
Energy efficiency ratio (EER) is 50/60 Hz L35 L35:
Cooling Capacity L35 L35 (EER) 50 Hz: 3.46
Cooling Capacity L35 L35 (EER) 60 Hz: 3.46
Seasonal energy efficiency ratio (SEER) 50/60 Hz: 8.1
Type: wall mounted
Size:
Width: 450 mm
Height: 1600 mm
Depth: 393 mm
Necessary installation port:
Opening width: 433 mm
Opening height: 1,579 mm
Protection class IP, according to EN 60 529: internal circulation protection class IP 55
Refrigerant/cooling medium:
Refrigerant: R134a
Quantity: 1.75kg
Global Warming Potential (GWP): 1,430
CO₂ equivalent (CO₂e): 2.5t
Temperature regulator: e+ controller (factory setting +35 °C)
Operating temperature range: -20 °C... 60 °C
Storage temperature range: -40 °C... 70 °C
Refrigerant circuit (active) operating temperature range: 3 °C... 60 °C
Heat pipe operating temperature range: -20 °C... 45 °C
Adjustment range: 20 °C... 50 °C
Rated power Pel:
Rated power L35 L35/50 Hz: 1.21kW
Rated power L35 L35/60 Hz: 1.21kW
Rated power L35 L50/50 Hz: 1.28kW
Rated power L35 L50/60 Hz: 1.28kW
Allowable working pressure (p Max) : 24 bar
Tax code: 84158200
EAN: 4028177935532
Product Description: SK Blue e+ Cooling equipment for chemical industry, wall mounted, 4.2kW, 380-480 V, 3~, 50-60 Hz, steel plate, W x H x D: 450 x 1600 x 393 mm
