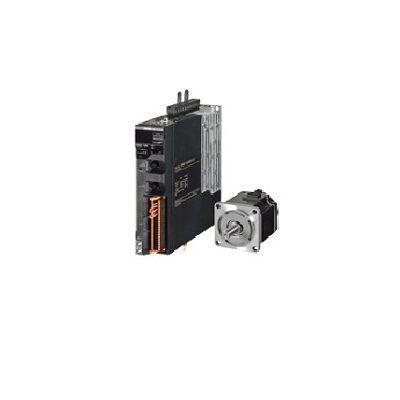

Omron R88M-1□ / R88D-1SN□-ECTAC servo system IP20, operating height: altitude below 1000m, improve the efficiency of installation and commissioning, improve the performance of the equipment, meet the best safety standards.
characteristic
Applicable motor power 50W - 15kW
A 23-bit battery-free ABS encoder is configured
Improved loop control to improve tracking performance and shorten positioning time
With Security features (STO)
When using the safety input signal:
EN ISO 13849-1 (Cat.3PLe), EN61508 (SIL3), EN62061 (SIL3), EN61800-5-2 (STO)
When communicating with EtherCAT:
EN ISO 13849-1 (Cat.3 PLd), EN61508 (SIL2), EN62061 (SIL2), EN61800-5-2 (STO)
Ambient temperature and humidity
0 -- 55°C, below 90%RH (no condensation)
Store the ambient temperature and humidity
-20 -- +65°C, below 90%RH (no condensation)
Air requirements for use and preservation environment
Non-corrosive gas, etc
Service height
Below 1000m above sea level
Vibration resistance
10 -- 60Hz, acceleration below 5.88m/s2 (non-continuous use at resonance point)
Insulation resistance
At least 0.5MΩ between the power terminal/power terminal and PE (DC500V)
Withstand voltage
AC1,500V 1 minute (50/60Hz) between the power terminal/power terminal and PE
Protective structure
IP20 (installed in the cabinet with protection level IP54)
