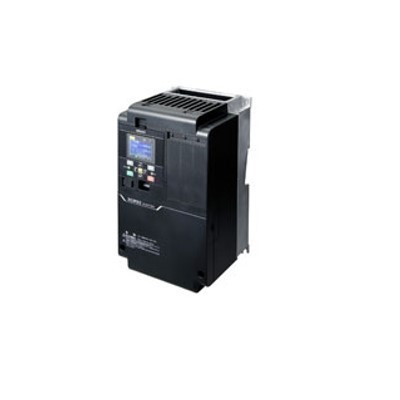

The OMRON frequency drive inverter can meet the diverse needs of the industrial automation field. It is a variable frequency inverter that supports 2.2kW motors. The VFD inverter 3 phase is suitable for a three-phase 200÷240VAC power supply environment. It can achieve high-precision speed and torque control, maintaining stable motor operation even without sensors. Thanks to its outstanding energy-saving performance and precise control capabilities, the OMRON 3G3RX2-A2015 has become an essential drive control solution in many industrial scenarios.
Product Specifications
Rated Power: 2.2kW.
Supply Voltage: Three-phase 200÷240VAC.
Control Mode: Sensorless vector control is supported, enabling high-precision speed and torque control.
Communication Interface: Multiple communication protocols are supported for easy communication with PLCs, PCs, and other devices.
Protection Functions: Overload, overheat, overvoltage, undervoltage, and other protection functions are included.
Environmental Adaptability: It can operate in ambient temperatures ranging from -10°C to +50°C.
Product Features
High-Precision Control: Sensorless vector control technology ensures stable motor operation even without sensors.
Easy Operation: This frequency drive inverter is equipped with an integrated digital dial and a four-digit LED display. Users can directly access and adjust all important parameters.
Simple Wiring: Integrated spring clamps are used for quick connections of control and power lines, ensuring simplicity and reliability in wiring.
Durability: High-performance heat-resistant capacitors and cooling fans with sealed bearings are installed to extend the inverter's service life.
Application Scenarios
Conveyor Belt Drives: Used in logistics, packaging, food processing, and other industries to control the start, stop, and speed regulation of conveyor belts.
Fan and Pump Control: Used in HVAC, water treatment, chemical, and other fields to adjust the speed of fans and pumps to achieve energy savings.
Machine Tool Applications: Such as lathes, drilling machines, etc., precise motor speed control improves processing accuracy and product quality.
Instructions for Use
Installation and Wiring
Installation Environment: Choose a dust-free, non-corrosive gas-free, and low-electromagnetic interference environment, and ensure good heat dissipation for the equipment.
Wiring Requirements: Follow the wiring diagram in the product manual strictly to ensure correct connections of power, signal, and motor lines.
Grounding Protection: Ensure proper grounding of the equipment in accordance with national and local electrical safety standards.
Parameter Settings
Basic Parameter Settings: Including motor parameters, control mode, frequency range, etc., set according to actual application needs.
Advanced Function Configuration: Such as PID control, multi-speed control, etc., configure based on specific application scenarios.
Maintenance and Inspection
Regular Inspection: Check the inverter's appearance for damage, dust accumulation on heat sinks, and proper fan operation.
Parameter Verification: Regularly verify the inverter's parameter settings to ensure they match actual application needs.
Fault Diagnosis: When a fault occurs, promptly check the fault code and troubleshoot according to the manual's fault diagnosis guide.
Precautions
Environmental Conditions: Avoid using the product in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent performance and lifespan issues.
Power Supply Requirements: Ensure stable supply voltage to avoid damage to the inverter from voltage fluctuations.
Safe Operation: Avoid contact with live parts during operation to ensure operator safety.
Frequently Asked Questions (FAQ)
How to configure the communication interface of the OMRON 3G3RX2-A2015 inverter?
Communication Interface Types: The frequency drive inverter supports multiple communication protocols, including Modbus-RTU.
Communication Line Connection: Ensure correct connection of communication lines. Use shielded cables and ensure proper grounding of the shielding to reduce electromagnetic interference.
Communication Parameter Settings: Set the inverter's communication address, baud rate, data bits, stop bits, etc., according to the protocol requirements. Ensure consistency with the master device's communication parameters for reliable connection.
How to perform motor auto-tuning on this Omron RX2 series product?
Importance of Motor Auto-tuning: Auto-tuning is essential for matching the inverter to the motor, enhancing control accuracy and system stability. First, set the motor's nameplate parameters, including power, rated voltage, rated current, etc.
Precautions During Auto-tuning: During auto-tuning, the frequency inverter injects current into the motor. Ensure proper connection between the motor and inverter, and that the inverter is ready. Also, ensure the motor is stationary to prevent damage during tuning.
Results After Auto-tuning: After completion, the Omron inverter automatically adjusts control parameters based on the motor's actual parameters to achieve optimal performance. This improves system response and control accuracy, meeting high-precision control needs.
How to choose the power range of this Omron inverter?
Select Based on Load Requirements: When choosing the inverter's power range, consider the actual load of the motor. For light loads, select an inverter matching the motor's rated power. For heavy loads or high starting torque needs, choose a higher-power inverter.
Consider Safety Margin: It's advisable to select an inverter slightly larger than the motor's rated power to handle load fluctuations and unexpected situations.
Overload Capability: This VFD inverter 3 phase can handle short-term overloads above its rated power. However, long-term overloading can affect its lifespan and performance, so avoid continuous overloading when selecting the power range.
What is the cooling method of the OMRON variable frequency inverter?
Cooling Method: The frequency inverter uses forced air cooling with an internal cooling fan.
Installation Requirements: Ensure sufficient space around the inverter for air circulation. Avoid installing it in enclosed or poorly ventilated areas to maintain effective cooling.
Maintenance and Care: Regularly clean dust from the fan and heat sinks to prevent overheating due to poor cooling. Check the fan's operation to ensure it works properly.
How to avoid electromagnetic interference with this frequency inverter?
Built-in Filters: The variable frequency inverter has an integrated EMC filter that meets relevant electromagnetic compatibility standards, effectively suppressing electromagnetic interference.
Wiring Precautions: Avoid placing signal and power lines close together to reduce electromagnetic interference. Use shielded cables for signal lines and ensure proper grounding of the shielding.
Grounding Measures: Proper grounding is crucial for reducing electromagnetic interference. Ensure the equipment is well-grounded in accordance with national and local electrical safety standards.
What protection functions does the Omron RX2 series inverter have?
Overload Protection: When the motor load exceeds the rated value, the VFD inverter 3 phase automatically reduces frequency or stops to protect the motor and inverter.
Overheat Protection: An internal temperature sensor monitors the inverter. If the temperature exceeds the set value, it automatically shuts down to prevent damage from overheating.
Overvoltage and Undervoltage Protection: The inverter automatically stops when the supply voltage is too high or too low. Additionally, it features short-circuit and phase-loss protection to ensure safe system operation.
How to perform regular maintenance on the inverter?
Appearance Inspection: Regularly check the inverter's appearance for damage or abnormalities, such as cracks in the housing or loose screws.
Cooling System Maintenance: Clean dust from fans and heat sinks to ensure proper cooling system operation. Check the fan's operation and replace it if necessary.
Electrical Connection Check: Ensure secure connections of power and signal lines and check for good contact. Also, monitor the motor's operating condition and address any issues promptly.
What should be noted during the installation of the inverter?
Installation Location: Choose a well-ventilated, dust-free, and non-corrosive gas-free environment. Avoid installing the inverter in high-temperature, high-humidity, or high-electromagnetic interference areas.
Installation Method: Ensure vertical installation to facilitate heat dissipation. Use appropriate fixing methods to prevent vibration from affecting the equipment.
Power Connection: Ensure the power cable meets the required specifications and pay attention to the correct phase sequence. Also, ensure proper grounding of the equipment.
How to choose the control mode of the OMRON 3G3RX2-A2015 inverter?
Select Based on Application Needs: For applications requiring high-precision speed control, choose sensorless vector control mode. For general constant-speed control applications, select the V/F control mode.
Control Mode Characteristics: Sensorless vector control mode provides high-precision speed and torque control, suitable for high-accuracy control scenarios. V/F control mode is simple and easy to use, suitable for general constant-speed control.
Parameter Settings: After selecting the control mode, configure the parameters according to specific application needs to achieve the best control effect.
How to set the frequency setting channel of the inverter?
Frequency Setting Methods: Frequency can be set through the inverter panel, external analog signals, or digital signals. Users can choose the appropriate frequency setting method based on actual application needs.
Signal Source Requirements: When setting the frequency setting channel, ensure the stability and accuracy of the signal source. For example, when using external analog signals for frequency setting, ensure signal stability and interference resistance.
Parameter Configuration: Configure the parameters according to the selected frequency setting method. For example, for external analog signal settings, set the input range of the signal and the corresponding frequency range.
