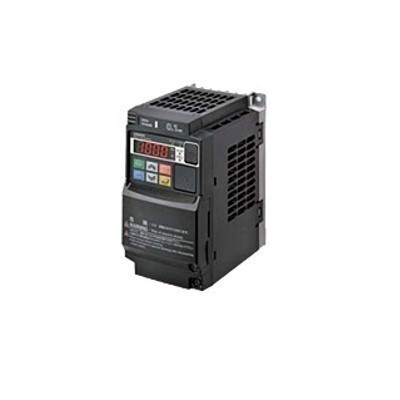

The OMRON MX2 inverter, specifically the 3G3MX2-A2150-ZV1 model, is a high-performance, multifunctional compact inverter designed for industrial automation. As part of the OMRON MX2 inverter series, it supports a three-phase 400V input and delivers precise motor control, making it ideal for various OMRON machine applications. The 3G3MX2 inverter features advanced functionalities such as simple positioning and permanent magnet motor control. Its compact design ensures easy installation and high-precision speed and torque control, making it widely used in industrial automation.
Product Parameters
Power Voltage: Three-phase 400V (-15% to +10%), 50/60Hz ±5%
Rated Output Capacity: 15kW (up to 18.5kW in light-load mode)
Rated Input Current: 36A
Output Voltage: Three-phase 400V (less than input voltage)
Output Current: 36A
Braking Torque: Up to 50% during short-time deceleration (without a braking resistor)
Cooling Method: Natural cooling (fanless)
Dimensions: 100×220×200mm (width×height×depth)
Weight: Approximately 10kg
Product Features
Multifunctionality: The OMRON MX2 inverter supports simple positioning and permanent magnet motor control, meeting various industrial needs.
High-Precision Control: Provides accurate speed and torque control, ideal for applications requiring high precision.
Compact Design: Small and easy to install in space-constrained OMRON machine applications.
Built-in Filters: Equipped with output noise and radio noise filters to reduce electromagnetic interference.
Multiple Control Modes: Supports V/F control and sensorless vector control for flexible motor operation.
Application Scenarios
Industrial Automation: Used in conveyors, fans, and pumps to optimize efficiency.
Machine Tool Processing: Ensures precise motor speed control, improving accuracy and quality.
HVAC Systems: Adjusts fan and pump speeds for energy savings.
Food Processing: Enhances conveyor and mixing equipment control for stability.
OMRON Machine Applications: Specifically designed to integrate with OMRON machine systems, ensuring smooth operation and high compatibility.
Instructions for Use
Installation and Wiring
Installation Environment: Ensure a well-ventilated, dust-free area free of corrosive gases.
Wiring Requirements: Follow the manual for proper connection of power, signal, and motor lines.
Grounding Protection: Proper grounding is essential for safety and performance.
Parameter Settings
Basic Parameters: Configure motor parameters, control modes, and frequency ranges.
Advanced Functions: Set up PID control and multi-speed control for specific applications.
Maintenance and Inspection
Regular Inspection: Check for external damage, dust buildup, and fan operation.
Parameter Verification: Ensure settings align with application requirements.
Fault Diagnosis: Troubleshoot using fault codes.
Common Questions and Answers
How to Perform Motor Autotuning?
Autotuning enhances compatibility between the 3G3MX2 inverter and the motor, improving accuracy. Before starting, set the motor’s nameplate parameters such as power, voltage, and current. Ensure the motor is stationary and correctly connected. After completion, the OMRON MX2 inverter will adjust control parameters automatically.
How to Configure Communication Interfaces?
The 3G3MX2 inverter supports Modbus-RTU and other communication protocols. Use shielded cables and proper grounding to reduce interference. Set parameters like baud rate and addresses for seamless integration.
How to Select the Inverter's Power Range?
Choose the power rating based on the motor’s load requirements. For heavy loads, selecting a slightly larger OMRON MX2 inverter ensures stability. While the inverter has some overload capacity, long-term overload may reduce lifespan.
What is the Cooling Method?
The OMRON MX2 inverter uses natural cooling without additional fans. Ensure adequate ventilation during installation. Regular cleaning improves heat dissipation efficiency.
How to Avoid Electromagnetic Interference?
Built-in Filters: Suppresses electromagnetic noise.
Proper Wiring: Keep signal lines separate from power lines and use shielded cables.
Grounding Measures: Proper grounding is essential for minimizing interference.
What Protective Functions Does the Inverter Have?
Overload Protection: Reduces frequency or shuts down when overloaded.
Overheat Protection: Built-in sensors shut down the inverter at high temperatures.
Voltage Protection: Prevents operation under abnormal power conditions.
How to Perform Regular Maintenance?
Visual Inspection: Check for damage and contamination.
Cooling System Maintenance: Clean dust and check fan operation.
Electrical Connection Check: Ensure secure wiring connections.
How to Select the Control Mode?
For high-precision applications, sensorless vector control mode in the OMRON MX2 inverter provides superior performance. Configure parameters accordingly.
How to Set the Frequency Setting Channel?
Frequency can be set via the control panel, external analog signals, or digital inputs. Use stable signal sources to ensure reliable performance.
