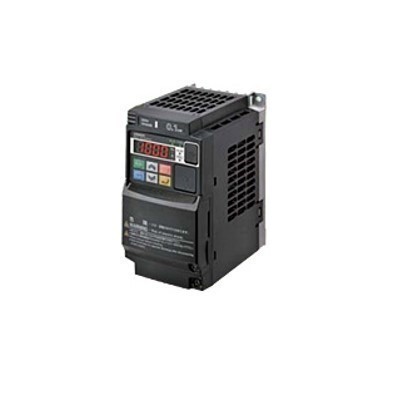

The OMRON Inverter model OMRON 3G3MX2-A2110-ZV1 is a multifunctional and compact OMRON MX2 series inverter, designed to meet diverse industrial needs. As part of the OMRON MX2 lineup, it offers simple positioning and permanent magnet motor control, making it ideal for various applications. This OMRON Inverter supports single-phase 200V input, enabling efficient motor control and energy-saving operations.
Product Specifications
Rated Power: 1.1kW
Rated Input Voltage: Single-phase 200V -15% to 240V +10%, 50/60Hz ±5%
Rated Output Voltage: Three-phase 200V to 240V (less than input voltage)
Rated Output Current: 5.8A
Cooling Method: Self-cooled (fanless)
Weight: 1.0kg
Dimensions: 68mm (width) × 128mm (height) × 112mm (depth)
Product Features
Simple Positioning Function: Supports simple positioning control, ideal for applications requiring precise position control.
Permanent Magnet Motor Control: Efficiently controls permanent magnet motors to enhance overall system efficiency.
Multiple Protection Functions: Includes overload protection, overheat protection, overvoltage and undervoltage protection, ensuring safe operation of the equipment.
Built-in EMC Filter: Effectively suppresses electromagnetic interference and complies with relevant electromagnetic compatibility standards.
Compact Design: Small size for easy installation and maintenance.
Applications
Conveyor Belt Drive: The OMRON 3G3MX2 is widely used in logistics, packaging, food processing, and other industries to control conveyor belt movement, improving production efficiency and stability.
Fan and Pump Control: This OMRON Inverter is commonly applied in HVAC, water treatment, and chemical industries, optimizing fan and pump speed for energy savings.
Machine Tool Equipment: The OMRON MX2 enhances motor speed control in lathes and drilling machines, ensuring precise machining and higher product quality.
Instructions for Use
Installation and Wiring
Installation Environment: Choose a dust-free, non-corrosive, and low-electromagnetic-interference environment with good heat dissipation.
Wiring Requirements: Follow the wiring diagram in the product manual to correctly connect power, signal, and motor cables. Use appropriately rated cables and ensure the correct phase sequence.
Grounding Protection: Properly ground the OMRON 3G3MX2 according to national and local electrical safety regulations.
Parameter Settings
Basic Parameter Settings: Configure motor parameters, control modes, and frequency ranges based on actual application needs.
Advanced Function Configuration: Utilize functions like PID control and multi-speed control for more complex control tasks.
Maintenance and Inspection
Regular Checks: Inspect the OMRON Inverter for physical damage, dust accumulation on heat sinks, and proper fan operation.
Parameter Verification: Regularly verify that parameter settings align with application requirements.
Fault Diagnosis: If a fault occurs, check the fault code and refer to the troubleshooting guide in the manual.
Precautions
Environmental Conditions: Avoid using the OMRON MX2 in high-temperature, high-humidity, or high-electromagnetic-interference environments.
Power Requirements: Ensure a stable power supply to prevent voltage fluctuations from damaging the OMRON Inverter. Wait before re-powering after shutdown to prevent damage.
Safe Operation: Avoid contact with live parts during operation. Disconnect power and wait for capacitor discharge before performing maintenance.
FAQ
How to Perform Motor Self-tuning on the OMRON 3G3MX2 Inverter?
Importance of Motor Self-tuning: Self-tuning is essential for ensuring optimal performance of the OMRON 3G3MX2 inverter with the connected motor. By entering the motor’s nameplate parameters—such as power, rated voltage, and rated current—the inverter can fine-tune its control strategy.
Precautions During Self-tuning: During self-tuning, the OMRON Inverter injects current into the motor. Ensure the motor is correctly connected and in a stationary state to avoid potential damage.
Results of Self-tuning: Upon completion, the OMRON MX2 automatically adjusts its parameters based on the motor’s actual characteristics, improving system response and control precision.
How to Configure the Communication Interface of the OMRON 3G3MX2 Inverter?
Communication Interface Type: The OMRON 3G3MX2 supports the Modbus-RTU protocol via an RS485 communication interface, making it suitable for integration with industrial automation systems.
Communication Line Connection: Properly connect communication lines using shielded cables with well-grounded shielding to minimize electromagnetic interference.
Communication Parameter Settings: Configure the inverter’s communication address, baud rate, data bits, and stop bits to match the master device’s settings, ensuring reliable data transmission.
How to Select the Power Range of the OMRON 3G3MX2 Inverter?
Based on Load Requirements: When selecting an OMRON Inverter, match its power range to the motor’s rated power. For light loads, an exact match is sufficient, while for heavy loads or applications requiring high starting torque, selecting a slightly higher power rating is recommended.
Safety Margin: Choosing an OMRON MX2 with a slight power reserve allows it to handle load fluctuations and unexpected conditions without performance degradation.
Overload Capability: The OMRON 3G3MX2 can sustain short-term overloads beyond its rated capacity, but continuous overloading may impact its lifespan and efficiency.
What is the Cooling Method of the OMRON 3G3MX2 Inverter?
Cooling Method: The OMRON Inverter employs self-cooling through natural convection, eliminating the need for a cooling fan.
Installation Requirements: To maintain effective heat dissipation, install the OMRON MX2 in an area with sufficient ventilation and clearance around it. Avoid enclosed or poorly ventilated spaces.
Maintenance: Regularly clean dust and debris from the inverter to prevent overheating and maintain optimal operation.
How to Avoid Electromagnetic Interference with the OMRON 3G3MX2 Inverter?
Built-in Filter: The OMRON Inverter features an integrated EMC filter, which complies with electromagnetic compatibility standards to reduce interference.
Wiring Precautions: To minimize electromagnetic interference, keep power cables and signal cables separated and use shielded communication lines.
What are the Basic Installation Requirements for the OMRON 3G3MX2 Inverter?
Environmental Conditions: Install the OMRON MX2 in a dry, dust-free, and non-corrosive environment with minimal electromagnetic interference.
Wiring Guidelines: Follow the provided wiring diagram to correctly connect power, signal, and motor cables. Use appropriately rated cables and ensure the correct phase sequence.
Grounding: Properly ground the OMRON 3G3MX2 according to electrical safety regulations to ensure safe operation.
How to Set Up the Frequency Range on the OMRON 3G3MX2 Inverter?
Basic Settings: The OMRON Inverter allows users to define minimum and maximum frequency limits based on application requirements.
Customizable Frequency Ranges: Through the parameter settings, users can program multiple speed levels for precise control.
Advanced Features: The OMRON MX2 also supports PID control and multi-speed operation, allowing more complex motor control.
How to Troubleshoot Common Errors in the OMRON 3G3MX2 Inverter?
Fault Code Diagnosis: When an error occurs, refer to the error codes displayed on the OMRON Inverter and check the manual for troubleshooting guidance.
Common Issues: Overvoltage, undervoltage, overcurrent, and overheating are among the most frequent inverter faults.
Resolution Steps: Inspect wiring connections, verify input voltage stability, and ensure proper ventilation to address common problems.
How to Optimize Energy Efficiency with the OMRON 3G3MX2 Inverter?
Variable Speed Control: The OMRON MX2 adjusts motor speed based on demand, reducing unnecessary energy consumption.
Optimized Motor Performance: By enabling permanent magnet motor control, the OMRON 3G3MX2 improves system efficiency.
Advanced Energy-saving Features: Users can configure PID control and automatic energy-saving modes for further efficiency gains.
What Maintenance is Required for Long-term Reliability of the OMRON 3G3MX2 Inverter?
Regular Inspections: Periodically check the OMRON Inverter for physical damage, dust accumulation, and loose wiring connections.
Cooling System Maintenance: Keep ventilation paths clear and clean the heat sinks to ensure proper airflow.
Parameter Verification: Regularly review the inverter’s settings and configurations to confirm they align with operational requirements.
