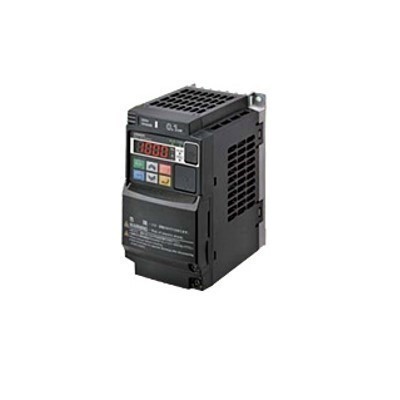

The OMRON Inverter 3G3MX2-A4055-ZV1 is a high-performance industrial inverter designed to deliver precise control for a wide range of applications. This advanced OMRON Inverter is equipped with state-of-the-art technology to ensure reliable and efficient operation, making it an ideal choice for driving OMRON servo motorss and other industrial equipment. Whether used in machine tools, conveyor systems, or HVAC applications, the 3G3MX2-A4055-ZV1 offers exceptional performance and flexibility. With OMRON Controls, users can easily manage and optimize their industrial processes.
Product Specifications
Rated Power: 5.5kW (ideal for light-load applications)
Input Voltage: 3-phase, 380-480V
Rated Current: 11A
Output Frequency Range: 0.01-590Hz
Control Methods: Sensorless vector control, V/F control
Communication Interfaces: RS-485 (supports Modbus protocol), USB
Cooling Method: Natural cooling
Operating Temperature: -10°C to +50°C
Dimensions: Width 128mm × Height 275mm × Depth 280mm
Product Features
High-Precision OMRON Controls: The OMRON Inverter supports sensorless vector control, enabling precise speed and torque control for OMRON servo motorss.
Multiple Control Modes: Offers V/F control, sensorless vector control, and V/F control with speed feedback to meet diverse application needs.
Rich I/O Interfaces: Equipped with various digital inputs, analog inputs, pulse inputs, as well as relay and analog outputs.
Built-in Protection Functions: Features overcurrent, overvoltage, undervoltage, overtemperature, and ground fault protection.
Energy-Saving Features: Supports energy-saving operation modes that automatically adjust output frequency based on load conditions.
Easy Integration: With OMRON Controls, the inverter can be seamlessly integrated into existing industrial systems.
Applications
Machine Tools: The OMRON Inverter is widely used in lathes, drilling machines, and other machine tools to improve machining accuracy and product quality through precise motor speed OMRON controls.
Conveyor Belt Drives: In logistics, packaging, and food processing industries, the 3G3MX2-A4055-ZV1 controls the start, stop, and speed of conveyor belts efficiently.
Fans and Pumps: In HVAC, water treatment, and chemical industries, the inverter regulates the speed of fans and pumps to achieve significant energy savings.
Doors and Door Drives: The OMRON Inverter is also used in construction and industrial doors to control the opening and closing speed and position of doors.
Instructions for Use
Installation and Wiring:
Choose a dust-free, non-corrosive, and low-electromagnetic-interference environment for installation, ensuring good heat dissipation.
Follow the wiring diagram in the manual to correctly connect power, signal, and motor cables.
Ensure proper grounding according to national and local electrical safety standards.
Parameter Settings:
Set basic parameters such as motor parameters, control methods, and frequency range based on application requirements.
Configure advanced functions like PID control and multi-speed control for more complex applications.
Maintenance and Inspection:
Regularly check the inverter’s appearance for damage, dust accumulation on heat sinks, and proper fan operation.
Periodically verify parameter settings to ensure they match application requirements.
When a fault occurs, refer to the troubleshooting guide in the manual to identify and resolve the issue.
Precautions
Environmental Conditions: Avoid using the OMRON Inverter in high-temperature, high-humidity, or high-electromagnetic-interference environments to maintain performance and longevity.
Power Requirements: Ensure stable power supply voltage to prevent damage to the inverter from voltage fluctuations.
Safe Operation: Avoid contact with live parts during operation to ensure operator safety.
Common Questions and Answers
How to Perform Motor Self-Tuning?
Importance of Motor Self-Tuning: Self-tuning ensures that the OMRON Inverter matches OMRON servo motors, enhancing control accuracy and system stability. It involves setting motor parameters such as power, rated voltage, and rated current.
Precautions During Self-Tuning: Ensure OMRON servo motors is correctly connected to the inverter and that the inverter is in a ready state. OMRON servo motors must be stationary during self-tuning to prevent damage.
Effect After Self-Tuning: The inverter will automatically adjust control parameters based on OMRON servo motors’s actual parameters, optimizing performance and control accuracy.
How to Configure the Communication Interface?
Communication Interface Type: The OMRON Inverter supports RS-485 communication with an integrated Modbus-RTU protocol.
Communication Line Connection: Use shielded cables for connections, ensuring the shielding is properly grounded to minimize electromagnetic interference.
Communication Parameter Settings: Set the inverter’s communication address, baud rate, data bits, and stop bits according to the protocol requirements. Ensure these settings match those of the host computer for reliable communication.
How to Select the Power Range of the Inverter?
Based on Load Requirements: Choose the OMRON Inverter’s power range based on the actual load conditions. For light loads, select an inverter matching OMRON servo motors’s rated power. For heavy loads or high starting torque requirements, choose a higher-power inverter.
Safety Margin: Consider a safety margin when selecting the power range. It is advisable to choose an inverter slightly larger than OMRON servo motors’s rated power to handle load fluctuations and unexpected situations.
Overload Capability: The 3G3MX2-A4055-ZV1 inverter can handle short-term overloads, but long-term overloading can affect its lifespan and performance. Avoid long-term overloading when selecting the power range.
What is the Cooling Method?
Cooling Method: The OMRON Inverter uses natural cooling.
Installation Requirements: Ensure sufficient space around the inverter for air circulation. Avoid installing it in enclosed or poorly ventilated areas to maintain effective cooling.
Maintenance: Regularly clean dust from the heat sinks to prevent overheating due to poor heat dissipation.
How to Avoid Electromagnetic Interference with the 3G3MX2-A4055-ZV1 Inverter?
Built-in Filters: The OMRON Inverter includes an EMC filter that meets electromagnetic compatibility standards, effectively suppressing electromagnetic interference.
Wiring Precautions: Avoid placing signal and power cables close together to reduce electromagnetic interference. Use shielded cables for signal connections and ensure proper grounding of the shielding.
Grounding Measures: Proper grounding is crucial for reducing electromagnetic interference. Ensure the device is grounded according to national and local electrical safety standards.
What Protection Functions Does the 3G3MX2-A4055-ZV1 Inverter Offer?
Overload Protection: The OMRON Inverter automatically reduces frequency or stops operation when OMRON servo motors load exceeds the rated value, protecting both OMRON servo motors and the inverter.
Overtemperature Protection: An internal temperature sensor monitors the inverter’s temperature. If it exceeds the set value, the inverter automatically shuts down to prevent damage.
Overvoltage and Undervoltage Protection: The inverter automatically stops when the power supply voltage is too high or too low. It also features short-circuit and phase-loss protection to ensure safe operation.
How to Perform Regular Maintenance on the Inverter?
Appearance Inspection: Regularly check the inverter for damage or abnormalities, such as cracks in the casing or loose screws.
Cooling System Maintenance: Clean dust from the heat sinks and ensure the cooling system is working properly. Address any issues with the heat sinks promptly.
Electrical Connection Check: Verify that power and signal connections are secure and in good contact. Monitor the motor’s operating condition and address any issues immediately.
What Precautions Should Be Taken When Installing the 3G3MX2-A4055-ZV1 Inverter?
Installation Location: Choose an environment with good ventilation, free from dust and corrosive gases. Avoid installing the OMRON Inverter in high-temperature, high-humidity, or high-electromagnetic-interference areas.
Installation Method: Ensure the inverter is installed vertically for effective cooling. Use appropriate fastening methods to prevent vibration damage.
Power Connection: Ensure the power cable meets the required specifications and check the phase sequence. Proper grounding is essential.
How to Select the Control Mode?
Based on Application Needs: For high-precision speed control applications, choose sensorless vector control mode. For general constant-speed control applications, V/F control mode is suitable.
OMRON Controls Mode Characteristics: Sensorless vector control mode offers precise speed and torque control for high-accuracy applications, while V/F control mode is simple and suitable for general constant-speed control.
Parameter Settings: After selecting the control mode, configure the parameters according to the application needs to achieve optimal control.
How to Set the Frequency Setting Channel of the Inverter?
Frequency Setting Methods: Frequency can be set via the inverter panel, external analog signals, or digital signals. Choose the appropriate method based on application requirements.
Signal Source Requirements: Ensure the signal source is stable and accurate. For example, when using external analog signals, ensure signal stability and interference resistance.
Parameter Configuration: Configure the parameters according to the selected frequency setting method. For example, when using external analog signals, set the input range and corresponding frequency range.
