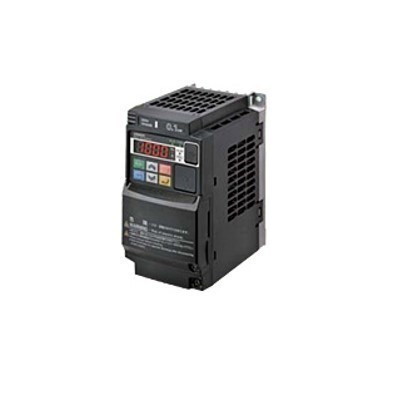

The OMRON Frequency Converter 3G3MX2-A4075-ZV1 is a high-performance, multifunctional, and compact inverter widely used in various scenarios of Omron Industrial Automation. With its powerful features and flexible configuration, it has become an essential component of the Sysmac system. This inverter is designed for three-phase 400V power supply, with a maximum motor capacity of 7.5kW, capable of meeting the drive requirements of a variety of industrial equipment.
Product Specifications
Power supply voltage: Three-phase 400V level
Maximum applicable motor capacity: 7.5kW
Rated output current: 15A
Control modes: Supports multiple control modes, including V/f control and sensorless vector control.
Frequency range: 0.5—400Hz
Communication interfaces: RS-485 (Modbus protocol), USB 2.0
Environmental adaptability
Operating temperature range: -10°C to +50°C
Storage temperature range: -20°C to +65°C
Humidity range: 20%~90% RH (non-condensing)
Protection functions: Equipped with multiple protection functions, including overload, overheat, overvoltage, undervoltage, and short-circuit protection.
Application Scenarios
Industrial automation production lines: Used to control the motors of conveyors, robotic arms, and other equipment, achieving precise speed and position control to improve production efficiency and product quality.
HVAC systems: Regulates the speed of fans and pumps to achieve energy savings while ensuring stable system operation.
Machine tools: Such as lathes and drilling machines, precise control of motor speed improves machining accuracy and product quality.
Packaging and logistics equipment: Controls the motors of packaging machines and logistics conveyors to ensure smooth operation and efficient handling.
Instructions for Use
Installation and Wiring
Installation environment: Choose a well-ventilated, dust-free, and non-corrosive gas environment for installation. Avoid installing the inverter in high-temperature, high-humidity, or strong electromagnetic interference areas.
Wiring requirements: Follow the wiring diagram in the product manual strictly to ensure the correct connection of power, signal, and motor cables. Use appropriately sized cables for the power supply and pay attention to the correct phase sequence.
Grounding protection: Ensure proper grounding of the equipment in accordance with national and local electrical safety regulations.
Parameter Settings
Basic parameter settings: Including motor parameters, control modes, frequency range, etc., configure these parameters reasonably according to the actual application needs. For example, choose the sensorless vector control mode for applications requiring high-precision control.
Advanced function configuration: Such as PID control and multi-speed control, configure these functions according to the specific application scenario to achieve more complex control capabilities.
Maintenance and Inspection
Regular inspection: Check the appearance of the inverter for damage, dust accumulation on the heat sinks, and proper operation of the fans. Regularly clean the dust from the heat sinks and fans to ensure smooth ventilation.
Parameter verification: Periodically verify the inverter's parameter settings to ensure they match the actual application requirements.
Fault diagnosis: When a fault occurs, promptly check the fault code and troubleshoot according to the fault diagnosis guide in the manual.
Notes
Environmental conditions: Avoid using the product in high-temperature, high-humidity, or strong electromagnetic interference environments to prevent performance degradation and lifespan reduction.
Power requirements: Ensure stable power supply voltage to avoid damage to the inverter due to voltage fluctuations. Wait for a certain period before re-powering the device after a power outage to prevent damage.
Safe operation: Avoid contact with live parts during operation to ensure the safety of operators. Disconnect the power and wait for capacitor discharge to complete before performing maintenance or inspection.
Materials and Manufacturing Process
The OMRON Frequency Converter 3G3MX2-A4075-ZV1 is built with high-quality materials and advanced manufacturing processes to ensure reliability and durability. Its robust enclosure can withstand dust and corrosive gases commonly found in industrial environments. Moreover, the internal electronic components of the inverter are rigorously selected and tested to ensure stability during long-term operation. This design not only enhances the product's lifespan but also enables it to better adapt to the complex working conditions in Omron Industrial Automation scenarios. By deeply integrating with the Sysmac system, this inverter can achieve more efficient automation control, further improving the efficiency and reliability of industrial production.
Additional Features
Easy positioning function: Supports positioning with 90° phase difference encoder input (up to 32kHz) and single-phase pulse input (up to 32kHz), meeting high-precision positioning requirements.
Communication unit: Equipped with a communication unit that supports EtherCAT® communication, facilitating integration with the Sysmac system.
Built-in braking unit: Effectively controls the motor's braking process, enhancing the safety and reliability of the equipment.
Product Advantages
High-precision control: The sensorless vector control mode can achieve high-precision speed and torque control, suitable for applications with high control accuracy requirements.
Multifunctionality: Supports various control modes and functions, such as V/f control and positioning control, meeting diverse industrial application needs.
Strong environmental adaptability: Can operate stably within a wide range of temperatures and humidity levels, adapting to various harsh industrial environments.
Flexible configuration: Supports multiple communication interfaces and frequency setting methods, allowing users to configure the inverter flexibly according to their specific needs. These advantages make this inverter an outstanding performer in the wide range of applications in Omron Industrial Automation and an ideal choice in the field of industrial automation.
After-Sales Service
Omron provides comprehensive after-sales service for the 3G3MX2-A4075-ZV1, including technical support, repair services, and spare parts supply. Users can obtain timely technical support and solutions through Omron's global service network. Additionally, Omron offers regular maintenance inspection services to help users ensure the long-term stable operation of their equipment. Through these services, Omron Industrial Automation can provide all-round support to users, ensuring the efficient operation of equipment in various industrial scenarios.
Frequent Questions and Answers
1.How to ensure compatibility between the OMRON inverter and the Sysmac system?
Possible cause: Incorrect communication parameter configuration or unsupported communication protocol.
Solution: Ensure that the inverter's communication interface (such as RS-485 or USB) is correctly connected and configured to support the Sysmac system's protocol (such as Modbus). Check and update the inverter's firmware to ensure compatibility with the Omron Industrial Automation system.
2.How to configure the 3G3MX2-A4075-ZV1 using Sysmac Studio software?
Problem description: How to configure the OMRON Frequency Converter 3G3MX2-A4075-ZV1 using Sysmac Studio software?
Possible cause: Incorrect installation or configuration of Sysmac Studio software.
Solution: Ensure that Sysmac Studio software is correctly installed and use the software's wizard function to configure the inverter. During configuration, make sure to select the correct device model and communication parameters. If problems arise, refer to the user manual or online support provided by Omron Industrial Automation.
3.What to do if there is a communication fault between the OMRON inverter and the Sysmac system?
Possible cause: Communication line fault, incorrect interface settings, or software configuration issues.
Solution: Check if the communication lines are correctly connected, ensuring no damage or interference. Verify that the communication interface settings of the inverter and Sysmac system are consistent. If the problem persists, try reinstalling or updating Sysmac Studio software.
4.How to achieve remote monitoring of the inverter through the Sysmac system?
Possible cause: Remote monitoring function not enabled or incorrect network settings.
Solution: Ensure that the inverter is correctly connected to the Sysmac system and that the remote monitoring function is enabled. Check the network settings to ensure that the inverter and monitoring device are on the same network. Refer to the remote monitoring guide provided by Omron Industrial Automation if necessary.
5.How to back up and restore parameters?
Possible cause: Incorrect use of the backup and restore functions in Sysmac Studio software.
Solution: Connect the inverter to the computer using Sysmac Studio software and use the software's backup function to save parameters. To restore, use the software's restore function to load the saved parameters back into the inverter. Follow the steps provided by Omron Industrial Automation during the process.
6.How to solve positioning control issues?
Possible cause: Incorrect positioning parameter settings or encoder malfunction.
Solution: Check if the positioning parameters are correctly set, including target position, speed, and acceleration. Ensure the encoder is correctly connected and functioning properly. If the problem continues, refer to the positioning control manual provided by Omron Industrial Automation for troubleshooting.
7.How to achieve coordinated operation between the OMRON inverter and other devices?
Possible cause: Incorrect communication or control logic configuration between devices.
Solution: Ensure that all devices have consistent communication interfaces and protocols. Use Sysmac Studio software to configure the control logic between devices to ensure smooth coordinated operation. Refer to the system integration manual provided by Omron Industrial Automation if necessary.
8.How to perform fault diagnosis?
Possible cause: Incorrect use of the fault diagnosis tool in Sysmac Studio software.
Solution: Connect the inverter to the computer using Sysmac Studio software and use the software's fault diagnosis function to view fault codes and logs. Refer to the user manual provided by Omron Industrial Automation for troubleshooting and repair based on the fault codes.
9.How to achieve energy-saving operation?
Possible cause: Energy-saving mode not enabled or unreasonable parameter settings.
Solution: Use Sysmac Studio software to enable the inverter's energy-saving mode and adjust operating parameters based on actual load to achieve optimal energy savings. Ensure that the inverter's operating frequency and power match the load requirements to avoid unnecessary energy consumption.
10.How to update the firmware?
Possible cause: Incorrect use of the firmware update function in Sysmac Studio software.
Solution: Connect the inverter to the computer using Sysmac Studio software and use the software's firmware update function to download and install the latest firmware version. Ensure a stable connection during the update process to avoid interruptions. Refer to the firmware update guide provided by Omron Industrial Automation if problems arise.
FAQ
