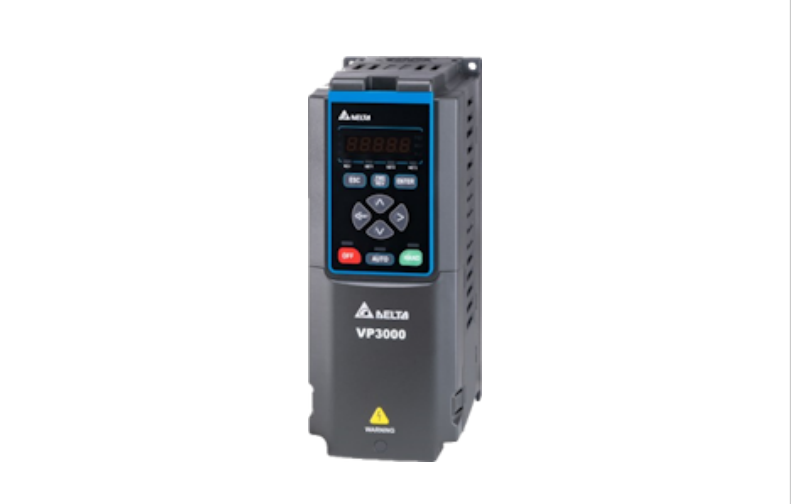

DELTA VP3000 VFD011VP43ANTAA frequency converter
AC motor frequency converter, VP3000 series, 4kW, 460V three-phase, 11A, IP20/UL Open Type, LED operation panel,VP3000 open-loop variable torque standard frequency converter
Input power supply (V)
460V 3-Phase
Output current (A)
eleven
Control methods
IMVF; IMSVC (Space Vector Control); PMSVC
Built in EMC filter
No
Built in DC reactance
No
Built in brake crystal
No
Motor power (kW)
four
Protection level
IP20/UL Open Type
version
Wall Mount
Safe torque shutdown
Yes
Motor type
Induction Motor (IM); Interior Permanent Magnet Motor (IPM); Surface Permanent Magnet Motor (SPM); PMA SynRM
Digital inputs (points)
six
Digital output (points)
two
Relay outputs (points)
two
Analog input 0-10V (points)
three
Analog Input -10~10V (points)
Analog input 0-20mA (points)
three
Analog input 4-20mA (points)
Analog output 0-10V (points)
two
Analog output -10~10V (points)
Analog output 0-20mA (points)
two
Analog output 4-20mA (points)
Pollution level
3C3
Humidity (%)
ninety-five
Load type
Fan&Pump Application; Variable Torque
Working mode type
Light Duty
Built in PLC
Yes
Support for external power supply cards
No
Slot 1 Card
Yes
Slot 2 Card
No
Slot 3 Card
Digital IO Card; Relay Card; Analog IO Card
Minimum carrier frequency (kHz)
Maximum carrier frequency (kHz)
Maximum output frequency (Hz)
Drive type
Single Drive
Inverter module type
Single Axis
Rectification module type
Not Applicable
Component type
Inverter Module
Inverter module input voltage
Not Applicable
