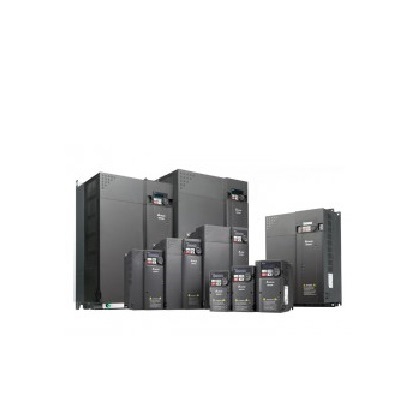

Introduction: VFD7A5MH21ANSAA inverter MH300 series, inherited Delta inverter excellent drive performance, while with compact size, application flexibility, system stability, reliable quality and easy installation five advantages, can use the best space and improve the efficiency of the machine, the input of every industrial resources into rich results, strengthen the industrial competitiveness. In addition, the MH300 series has built-in USB capabilities to quickly copy parameters and increase productivity.
Product parameter
Excellent driving characteristics
Overload can be as high as 150% / 60 seconds, 200% / 3 seconds, suitable for constant torque, variable torque, constant power and other loads
Support induction motor, permanent magnet synchronous motor, optional PG card for high precision speed, torque, positioning control
Strong low frequency output torque (0.5Hz / 200%, no PG vector control; 0 Hz / 200%, PG vector control), to help heavy load equipment to maintain smooth operation at low speed and high torque
Built-in tension control features
Support speed, torque, position control
Standard machine support 599Hz, high-speed machine support 2000Hz
Strong system support
Built-in PLC (5k steps), support program programming, save the cost of system construction
Built-in STO (SIL2 / PLd) safety stop function for enhanced security and reliability
Full range of support common DC bus
Standard support Modbus and CANopen communication (master or slave), in addition to a number of optional communication cards, including: EtherNet/IP, Modbus TCP, EtherCAT, DeviceNet, PROFIBUS DP, PROFINET, support multiple use and network communication needs
Supply built-in filter types
Optional 24 V power card to reduce unexpected downtime
Multivariate expansion of elasticity
Built-in 2 sets of 33 kHz high-speed pulse input (MI6&7) and 1 set of output terminals (DFM)
Built-in two sets of accessory card slots, can be installed together PG card or I/O expansion card, communication card, 24 V power card
Expandable DI/DO, AI/AO and RY accessory cards
Excellent tension control
Built-in roll diameter calculation: The roll diameter can be measured by line speed, material thickness and distance meter
Two sets of PID parameters: linearly adjustable to handle tension control at startup and at different reel sizes and line speeds
Tension taper calculation: automatically adjust the tension value with the increase of the winding diameter to prevent the material from wrinkling or deformation
Torque control conflict force, inertia compensation: automatically compensate the conflict on the retractable scroll bar and other mechanical losses and inertia to maintain constant tension
Automatic rewinding: Only external signal can complete automatic refuelling without stopping
