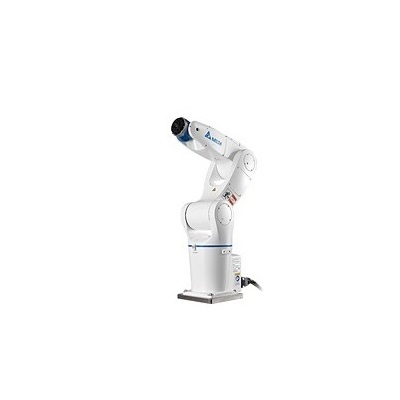

Introduction: The vertical multi-joint industrial robot launched by Delta, in addition to six axis of freedom, hollow wrist design, a variety of installation and friendly operation interface can be widely used in 3C electronics, electronic motors, metal processing and plastic industry, and to meet the detection, assembly, loading, loading and unloading, handling, packaging, locking screws and other application fields.
The DCV controller equipped with Delta vertical multi-joint industrial robot not only controls the key components, but also can quickly integrate the automation components launched by Delta, easily and easily combined with the peripheral integrated control development system, so as to create a streamlined and highly integrated robot workstation, which can improve the production efficiency and reduce the personnel cost.
Product characteristics
High precision and high speed
Three groups of solenoid valves are built in the body, which can be quickly integrated and applied
Wrist hollow design, easy to wire configuration
Slim shape design
Overall width ** 235 mm
Base 190*190 mm
Key parts homemade, easy to maintain and easy to integrate
Product parameter
Model: DRV70L7A6213N
Maximum working radius: 710mm
** Large load: 7kg
Range of action
J1: ±170°
J2: +133°/-105°
J3: +65°/-205°
J4: ±190°
J5: ±120°
J6: ±360°
High speed
J1:450°/sec
J2:340°/sec
J3:510°/sec
J4:550°/sec
J5:550°/sec
J6:820°/sec
Maximum synthesis speed: 11,000mm/sec
Allowable moment
J4:0.47kg*m²
J5:0.47kg*m²
J6:0.15kg*m²
Allowable inertia
J4:16.6Nm
J5:16.6Nm
J6:9.4Nm
Repetition accuracy: ±0.02mm
Standard cycle time * 1:0.32 SEC
Installation: table, hanging, wall hanging
IP level *² : IP40 (standard) /IP65 (optional)
Ambient temperature: 0℃ -- 40℃
Ambient humidity: 20 -- 80%RH
Vibration: 0.5G
Weight: 37kg
Controller series: DCV series
