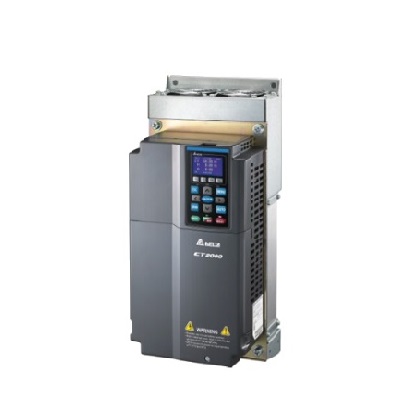

Description: VFD185CT43F00B Special inverter for textile industry, 18.5kW, 460V/ three-phase, 38A, IP00 UL Open Type, through-wall type, built-in brake crystal, motor type is induction motor; Embedded permanent magnet motor; Surface permanent magnet motor (SPM).
Product parameter
Input power (V)460V 3-Phase
Output current (A)38
Built-in brake crystal Yes
Motor power (kW)18.5
Protection level IP00/ UL Open Type
Version Not Applicable
Safe torque off Yes
Motor type
Induction Motor(IM) ; Interior Permanent Magnet Motor(IPM) ; Surface Permanent Magnet Motor(SPM)
Number input (points)8
Digital output (points) 2
Relay output (points)2
Analog input 0 -- 10V (points)1
Analog input -10 -- 10V (points)1
Analog input 0 -- 20mA (points)1
Analog input 4 -- 20mA (points)1
Analog output 0-10V (points)2
Analog output -10 -- 10V (points)1
Analog output 0 -- 20mA (points)
Analog output 4 -- 20mA (points)1
Pollution level 2
Humidity (%) 95
Load type Constant Torque
Work mode Type Light Duty; Heavy Duty
Built-in PLCYes
Support external power supply card Yes
Card in slot 1 Yes
Card in slot 2 Yes
Card in slot 3
Digital IO Card ; Relay Card ; Analog IO Card ; External Power Supply Card
** Small carrier frequency (kHz) 2
** Large carrier frequency (kHz) 15
** High output frequency (Hz)599
Cooling method Natural
Overall dimensions (W x H x D) (mm)200 x 361.8 x 189.4
Flange Mount
