Technical data

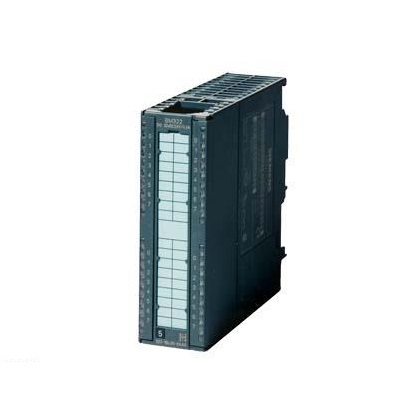

SIMATIC S7-300, SM 322, Digital output, Potential isolation, 16 DA (solid state Relay), 24-48V AC/DC; 0.5A, with one set, one 40 stitches
Supply voltage
The power supply and voltage break are bonded
● Blackout/blackout crossover time 5 ms
Load voltage L+
● Rating (DC) 24 V; 24/48
● Allowable range, lower limit (DC) 20.4V
● Allowable range, upper limit (DC) 57.6V
● Reverse polarity protection is
Input current
From the supply voltage L+, maximum 200 mA
From the backplane bus DC 5 V, Max 100 mA
Power loss
Power loss, typical value 2.8W
Digital output
Number of output terminals 16
Short circuit protection No; External presets
Control digit input is
Maximum specification size of motor starter conforming to NEMA protection Class 5 Conforming to NEMA
Output on-off capability
● The maximum value of lighting load is 2.5W
Output voltage
● For signal "1", minimum L+ (-0.25V)
Output current
● 0.5 A rating for signal "1"
● For signal "1" allowable range 0 to 40 ℃, maximum 0.5A
● For the signal "1" allowed range of 40 to 60 ℃, maximum 0.5A
● For the allowable surge current of signal "1", the maximum value is 1.5A; For 50 ms; 1, A, 2 s once
● For the residual current of signal "0", maximum 10 µA
The output delay when the resistance is loaded
● From "0" to "1", the maximum is 6 ms
● From "1" to "0", Max. 3 ms
The two outputs are in parallel
● Used to increase power No
● For redundancy control load is
Switching frequency
● The maximum value of resistance under load is 10 Hz
● The maximum value of inductive load is 0.5Hz
● For inductive load (in accordance with IEC 60947-5-1, DC13), the maximum is 0.5Hz
● The maximum value of lighting load is 0.5Hz
Total current at output (per group)
Horizontal mounting position
-- Up to 40 ℃, maximum 0.5 A; Each module is 8 A
-- Up to 60 ℃, maximum 0.5 A; Each module is 8 A
Vertical mounting position
-- Up to 40 ℃, maximum 0.5 A; Each module is 8 A
Conductor length
● Shielding, maximum 1 000 m
● Unshielded, maximum 600 m
Alarm/diagnosis/status information
The diagnostic function is; parameterizable
alarm
● Diagnostic alarm yes; parameterizable
diagnosis
● Diagnostic information can be read Yes
Diagnostic display LED
● Cumulative failure SF (red) is
● Digital output status display (green) Yes
Potential isolation
Digital output potential isolation
● Between the channels yes
● Between channels, group the number of points 1
● Between the channel and backplane bus is; Photoelectric coupler
● Between the channel and the supply voltage of the electronic component
insulation
Insulation test, using AC 1500 V
Connect technology/title
Required front plug 40 pins
dimension
Width 40mm
Height 125 mm
Depth 120 mm
weight
Weight, about 260 g
