Technical data

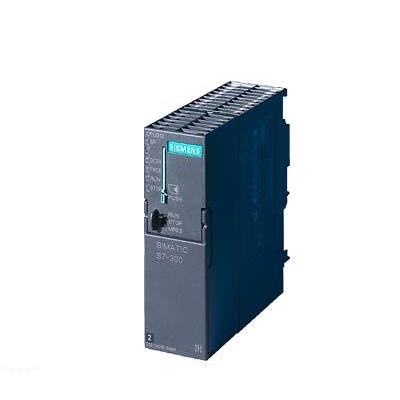

SIMATIC S7-300, CPU 312 CPU with MPI, integrated power supply 24V DC, memory 32 KByte, requires a micro memory card
General information
Hardware function status 01
Firmware version V3.3
packaged
● Engineering system STEP 7 V5.5 + SP1 or STEP 7 V5.2 + SP1, with HSP 218
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 19.2 V
The upper limit (DC) is 28.8V
External safety device of power conductor (recommended) *** Minimum 2 A
The power supply and voltage break are bonded
● Blackout/blackout crossover time 5 ms
● Repetition rate, *** minimum value 1 s
Input current
Consumption current (rated) 650 mA
Current consumption (no load), typical value 140 mA
Switching current, typical value 3.5 A
I squared t 1 A squared times s
Power loss
Power loss, typical value 4 W
memory
Working memory
● Integrated 32 kbyte
● Expandable No
Loading storage
● Plug-in type (MMC) Yes
● Plug-in type (MMC), Max value 8 Mbyte
● Data management on MMC (after last programming), *** min 10a
buffering
● Existence is; Guarantee via MMC (maintenance free)
● Without batteries is; Program and data
CPU- Processing time
For bit operations, the typical value is 0.1 µs
For word operations, the typical value is 0.24 µs
For fixed-point operations, the typical value is 0.32 µs
For floating-point arithmetic, the typical value is 1.1 µs
CPU-component
Number of components (total) 1 024; (DB, FC, FB); The maximum number of loadable blocks can be reduced by the installed MMCS.
DB
● Quantity, maximum value 1 024; Number bar: 1 to 16000
● Capacity, maximum value 32 kbyte
FB
● Quantity, maximum value 1 024; Number bar: 0 to 7999
● Capacity, maximum value 32 kbyte
FC
● Quantity, maximum value 1 024; Number bar: 0 to 7999
● Capacity, maximum value 32 kbyte
