Technical data

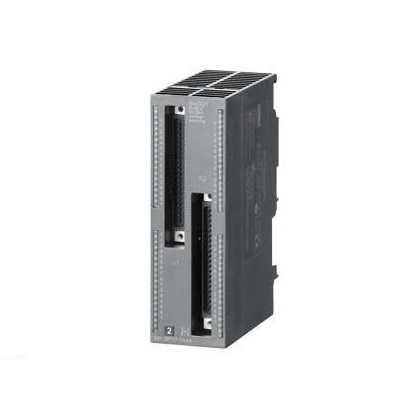

SIMATIC S7-300 digital input SM 321, potential isolation is divided into groups, 16 each, 64 DE, 24V DC, 3ms, P/M read terminal block 6ES7392-1.N00-0AA0 and cable 6ES7392-4... 0-0AA0 3 pieces
Supply voltage
Load voltage L+
● Rating (DC) 24 V
● Reverse polarity protection is
Input current
From the backplane bus DC 5 V, Max 100 mA
Power loss
Power loss, typical value 7 W
Digital input
Number Number of input terminals 64
Input characteristics comply with IEC 61131, type 1 is
The number of inputs that can be controlled simultaneously
All mounting positions
- The maximum value is 40 ° C and the maximum value is 64 ° C
- The maximum value is 60 ° C and the maximum value is 32 ° C
Horizontal mounting position
- The maximum value is 40 ° C and the maximum value is 64 ° C
- The maximum value is 60 ° C and the maximum value is 32 ° C
Vertical mounting position
- The maximum value is 40 ° C and the maximum value is 32 ° C
Input voltage
● Input voltage type DC
● Rating (DC) 24 V
● For signal "0" -30 to +5 V
● For signal "1" 13 to 30V
Input current
● For signal "1", typical value 4.2 mA
Input delay (when input voltage is rated)
For standard input
- Parameterized no
-- Rating 4.2ms
- When the value ranges from 0 to 1, the minimum value is 1.2 ms
- When the value ranges from 0 to 1, the maximum value is 4.8 ms
- When the value ranges from 1 to 0, the minimum value is 1.2 ms
- When the value ranges from 1 to 0, the maximum value is 4.8 ms
Conductor length
● Shielding, maximum 1 000 m
● Unshielded, maximum 600 m
sensor
Connectable sensor
● Dual-wire sensor No
Alarm/diagnosis/status information
Alarm no
Diagnostic function No
alarm
● Check whether the alarm is generated
● Process alarm No
diagnosis
● Diagnostic information can be read or not
● Disconnect No
Diagnostic display LED
● Cumulative failure SF (red) No
● Digital input status display (green) Yes
● Sensor power supply Vs (Green) No
Potential isolation
Digital input potential isolation
● Between channels no
● Between channels, group the number of points 16
● Between the channel and backplane bus is; Photoelectric coupler
insulation
Insulation test, using DC 500 V
Connect technology/title
Required front plug cable: 6ES7392-4Bxx0-0AA0 Terminal block: 6ES7392-1xN00-0AA0
dimension
Width 40mm
Height 125 mm
Depth 112 mm
weight
Weight, about 230 g
