Technical data

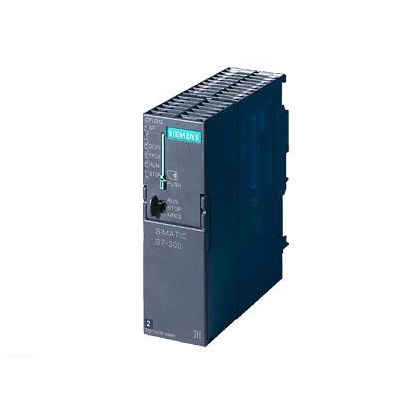

SIMATIC S7-300, CPU 312 CPU with MPI, integrated power supply 24V DC, memory 32 KByte, requires a micro memory card
General information
Hardware function status 01
Firmware version V3.3
packaged
● Engineering system STEP 7 V5.5 + SP1 or STEP 7 V5.2 + SP1, with HSP 218
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 19.2 V
The upper limit (DC) is 28.8V
External safety device of power conductor (recommended) minimum 2 A
The power supply and voltage break are bonded
● Blackout/blackout crossover time 5 ms
● Repetition rate, minimum value 1 s
Input current
Consumption current (rated) 650 mA
Current consumption (no load), typical value 140 mA
Switching current, typical value 3.5 A
I squared t 1 A squared times s
Power loss
Power loss, typical value 4 W
memory
Working memory
● Integrated 32 kbyte
● Expandable No
Loading storage
● Plug-in type (MMC) Yes
● Pluggable (MMC), Max. 8 Mbyte
● Data management on MMC (after last programming), minimum 10 a
buffering
● Existence is; Guarantee via MMC (maintenance free)
● Without batteries is; Program and data
CPU- Processing time
For bit operations, the typical value is 0.1 µs
For word operations, the typical value is 0.24 µs
For fixed-point operations, the typical value is 0.32 µs
For floating-point arithmetic, the typical value is 1.1 µs
CPU-component
Number of components (total) 1 024; (DB, FC, FB); The maximum number of loadable blocks can be reduced by the MMCS installed.
Nesting depth
● Each priority level is 16
● Additional Level 4 in error OB
Counter, timer and residual magnetism
S7 counter
● Quantity 256
Time range
- The lower limit is 10 ms
- The upper limit is 9 990 s
IEC timer
Being is
● Type SFB
● Unlimited quantity (limited via RAM only)
Data range and its remanence
The range of data retained (including time, counters, tags), up to 32 kbyte
mark
● Capacity: A maximum of 256 bytes
● remanence is present; MB 0 to MB 255
● Preset remanence MB 0 to MB 15
● Timing mark number 8; 1 tag byte
Data component
● Adjustable remanence is; Does not hold characteristics in DB
● Preset remanence is
Local data
● Maximum 32 kbyte per priority level; Each block has a maximum of 2 KB
Component carrier
● Component carrier, maximum 1
● Components per component carrier, Max. 8
time
clock
● Software clock is
● Can be buffered and synchronized no; Buffered, no; Synchronized, yes
● Daily deviation, maximum 10 s; Typical value: 2 s
● After the power supply is switched on, the clock display is still normal when the power supply is disconnected
Run time counter
● Quantity 1
● Number/number bar 0
● Range 0 to 2 to the 31st hours (when using SFC 101)
● Interval size 1 h
● The remainder is; You must restart each time you restart
1. Interface
Interface Type Integrated RS 485 interface
Potential isolation
Physical interface
● RS 485 is
● Interface output current, maximum 200 mA
● Transmission rate, maximum 187.5 kbit/s
Number of connections
● All 6
● Can be used in PG communication 5
- Reserve 1 for PG communication
-- Adjustable for PG communication, minimum value 1
- Adjustable for PG communication, Max. 5
● Can be used for OP communication 5
- Reserve 1 for OP communication
- Adjustable for OP communication, minimum value 1
- Adjustable for OP communication, Max. 5
● Can be used in S7 basic communication 2
- Reserve 0 for S7 Basis communication
- Can be adjusted for S7 Basis communication. The minimum value is 0
- Adjustable for S7 basic communication. Maximum value: 2
Alarm S module active at the same time, maximum 300
Debugging function test
Component state is; A maximum of two can be configured simultaneously
The steps are
The number of stopping points is 4
Width 40mm
Height 125 mm
Depth 130mm
weight
Weight, about 270 g
