Technical data

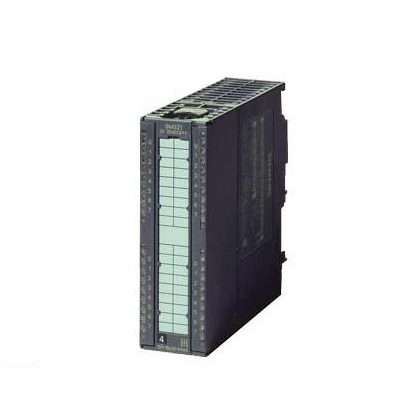

SIMATIC S7-300, Digital input SM 321, potential isolation, 16 digital inputs, 24V DC, 1 20 pins, 0.05ms input delay
Supply voltage
Load voltage L+
● Rating (DC) 24 V
● Allowable range, lower limit (DC) 20.4V
● Allowable range, upper limit (DC) 28.8V
Input current
From the backplane bus DC 5 V, Max 110 mA
Power loss
Power loss, typical value 3.8W
Digital input
Number Number of input terminals 16
Input characteristics comply with IEC 61131, type 1 is
The number of inputs that can be controlled simultaneously
Horizontal mounting position
- The maximum is 40 ℃ and the maximum is 16 ℃
- The maximum is 60 ℃ and the maximum is 16 ℃
Vertical mounting position
- The maximum is 40 ℃ and the maximum is 16 ℃
Input voltage
● Input voltage type DC
● Rating (DC) 24 V
● For signal "0" -30 to +5 V
● For signal "1" 13 to 30V
Input current
● For signal "1", the typical value is 7 mA
Input delay (when input voltage is rated)
For standard input
- Parameterized no
- When the value ranges from 0 to 1, the minimum value is 25 µs
- When the value ranges from 0 to 1, the maximum value is 75 µs
- When the value ranges from 1 to 0, the minimum value is 25 µs
- When the value ranges from 1 to 0, the maximum value is 75 µs
Conductor length
● Shielding, maximum 1 000 m
● Unshielded, maximum 600 m
sensor
Connectable sensor
● Double wire sensor is
- The maximum allowable closed-circuit current (for a dual-wire sensor) is 1.5 mA
Alarm/diagnosis/status information
Alarm no
Diagnostic function No
alarm
● Check whether the alarm is generated
● Process alarm No
Diagnostic display LED
● Digital input status display (green) Yes
Potential isolation
Digital input potential isolation
● Between channels no
● Between channels, group the number of points 16
● Between the channel and backplane bus is; Photoelectric coupler
insulation
Insulation test, using DC 500 V
Connect technology/title
Required front plug 20 pins
dimension
Width 40mm
Height 125 mm
Depth 120 mm
weight
Weight, about 200 g
