Technical data

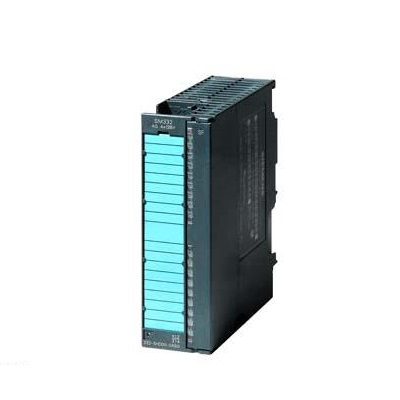

SIMATIC S7-300, analog output SM 332, channel potential isolation 4 Analog output, resolution 16 bits, 0-10V, 1-5V, +/-10V, +/-20mA, 0/4-20mA, 20 pins, suitable for beat synchronous operation improved bus cycle time, It is used for clock synchronization
Supply voltage
Load voltage L+
● Rating (DC) 24 V
● Reverse polarity protection is
Input current
Voltage from load L+ (no load), Max 290 mA
From the backplane bus DC 5 V, maximum 120 mA
Power loss
Power loss, typical value 3 W
Analog output
The number of analog output terminals is 4; Clock synchronization operation
Voltage output, short circuit protection is
Voltage output, short circuit current, Max 40 mA
Current output, no load voltage, maximum 18 V
Output range, voltage
● 0 to 10 V is
● 1 V to 5 V Yes
● -10 V to +10 V Yes
Output range, current
● 0 to 20 mA Yes
● -20 mA to +20 mA Yes
● 4 mA to 20 mA Yes
Load resistance (in rated output range)
● Minimum voltage output 1 kΩ
● Capacitance load at the voltage output, maximum 1 µF
● The maximum value of current output is 500 Ω
● Inductive load at current output, maximum 1 mH
Conductor length
● Shielding, maximum 200 m
Composition of analog values at the output end
Integration and conversion time/resolution per channel
● Resolution (bits including symbols) with overmodulation, up to 16 bits
● Conversion time (per channel) 200µs; 640 µs in isochronous mode operation
Starting time
● For resistance load 0.2ms
● For capacitive load 3.3ms
● For inductive load 0.5ms
Error/accuracy
Operating error limits throughout the temperature range
● Voltage, related to output range, (+/-) 0.12%
● Current, related to output range, (+/-) 0.18%
Basic error limit (operating error limit at 25 °C)
● Voltage, related to output range, (+/-) 0.02%
● Current, related to output range, (+/-) 0.02%
Alarm/diagnosis/status information
The diagnostic function is; parameterizable
alarm
● Diagnostic alarm yes; parameterizable
diagnosis
● Diagnostic information can be read Yes
Diagnostic display LED
● Cumulative failure SF (red) is
Potential isolation
Simulated output potential isolation
● Between the channels yes
● Between the channel and the backplane bus
● Between the channel and the supply voltage of the electronic component
insulation
Insulation test, using DC 1500 V
Connect technology/title
Required front plug 20 pins
dimension
Width 40mm
Height 125 mm
Depth 117 mm
weight
Weight, about 220 g
