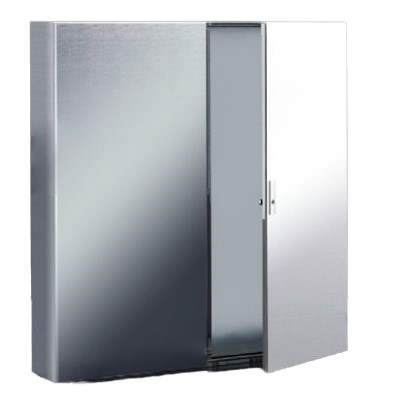

AE stainless steel compact housing, including mounting plate.
Product Code :AE 1019.600
Materials:
Case: stainless steel
Door: stainless steel with foamed polyurethane plastic seals on all sides
Mounting plate: steel plate
Stainless Steel 1.4301 (AISI 304)
Surface:
Box and door: brushed, particle size 400, roughness < 0.8μm
Mounting plate: galvanized
Scope of Supply:
Box with door
Mounting plate
Lock: 3 mm double teeth
Three point lock system
Protection Level NEMA: NEMA 12
Protection class IP, according to EN 60 529: IP 55
IK code: IK08
Size:
Width: 1,000 mm
Height: 1,200 mm
Depth: 300 mm
Mounting plate dimensions (W x H) : 940 mm x 1,155 mm
Number of doors: 2
Lock:
Lock specifications: three-point lock system
Number of locks: 1
Lock core: 3 mm double teeth
Material lock: Stainless Steel 1.4301 (AISI 304)
Basic material: stainless steel
Packing unit: 1 piece
Weight/Packing: 76 kg
Tax code: 94032080
Custom Tariff Number China (deviation to global nr) : Differing customs tariff number for China: 85380000
EAN: 4028177000698
ETIM 7.0: EC000261
ECLASS 8.0:27180101
Product Description: AE stainless steel tight fitting control box W1000H1200D300
